2P7/2R0/3PN

1-5-54

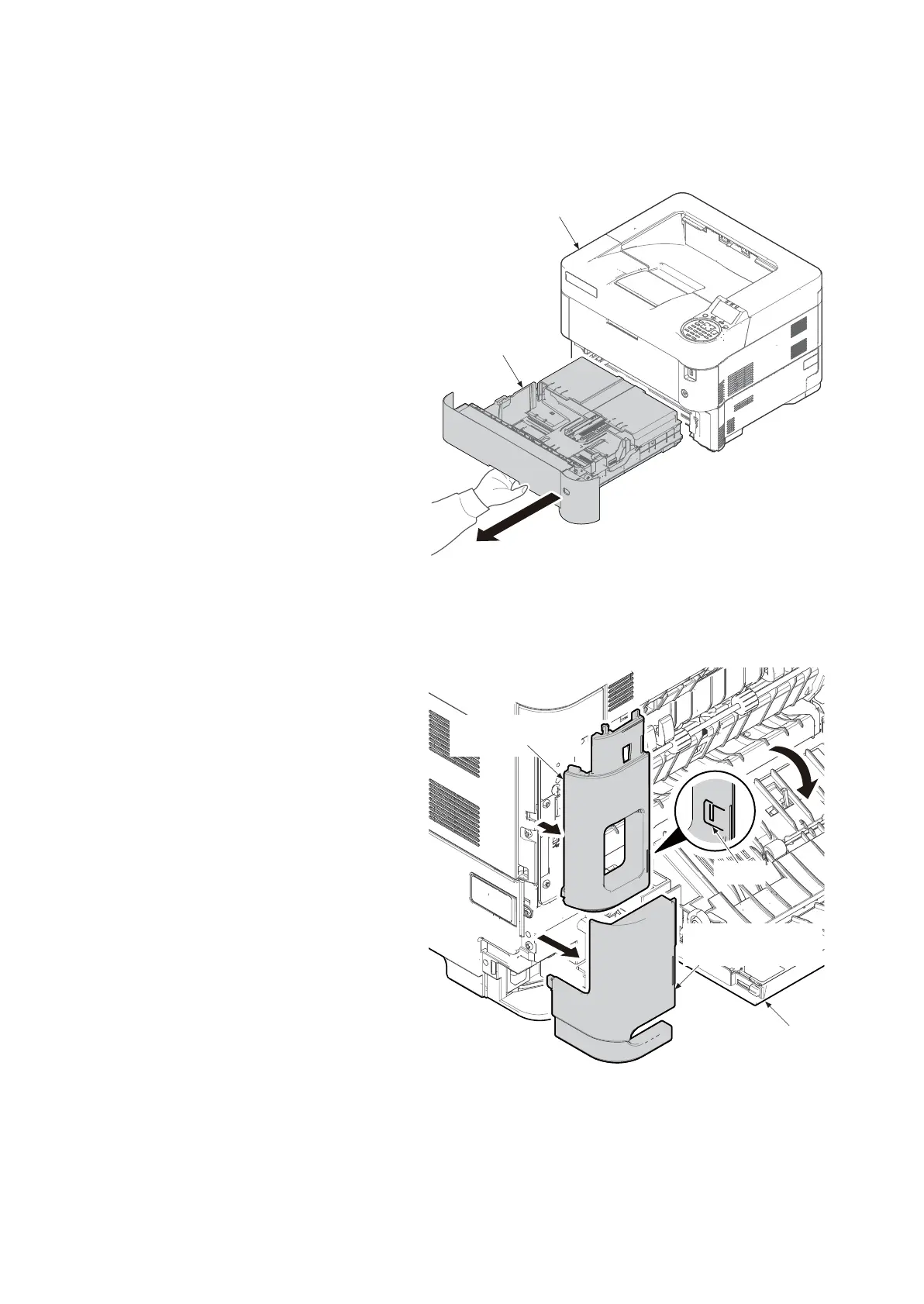

(5) Detaching and refitting the high voltage PWB

Procedure

1. Pull out the cassette.

Figure 1-5-99

2. Remove the power cord cover by slid-

ing it.

3. Release the hook of the interface cover

and then remove during twisting it.

Figure 1-5-100

Cassette

Printer

Interface cover

Power cord

connector cover

Rear cover

Hook
