2P7/2R0/3PN

1-5-53

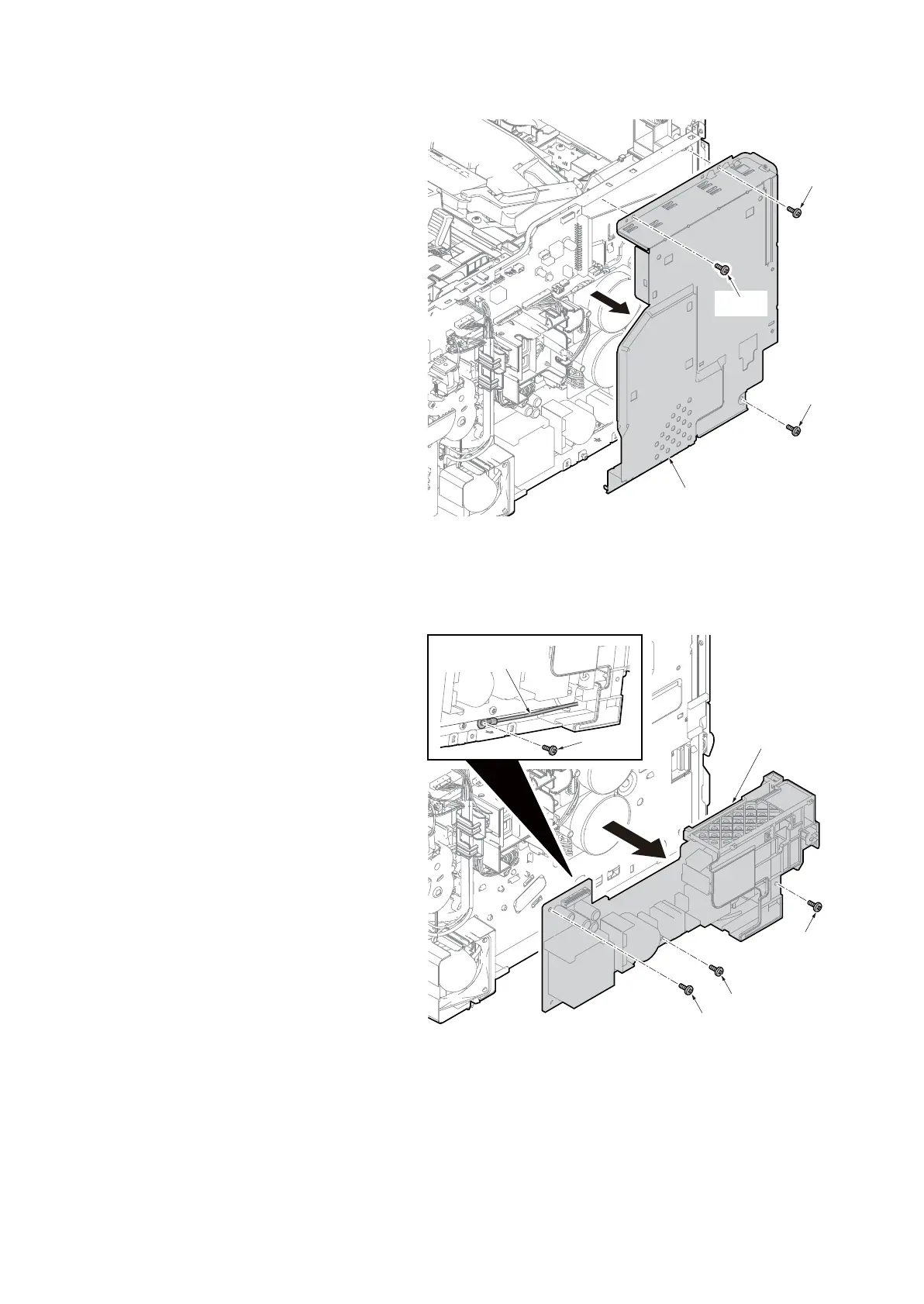

20. Remove three screws and then remove

the controller box cover.

Figure 1-5-97

21. Remove the grounding wire by remov-

ing the screw.

22. Remove three screws and then remove

the eject unit.

23. Check or replace the power source

PWB assembly and refit all the

removed parts.

Figure 1-5-98

Controller box cover

Screw

Power source

PWB assembly

Screw

Grounding wire
