2P7/2R0/3PN
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP
tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed
paper to the transfer/separation section.
(1) Cassette paper feed section
The cassette can contain 500 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.

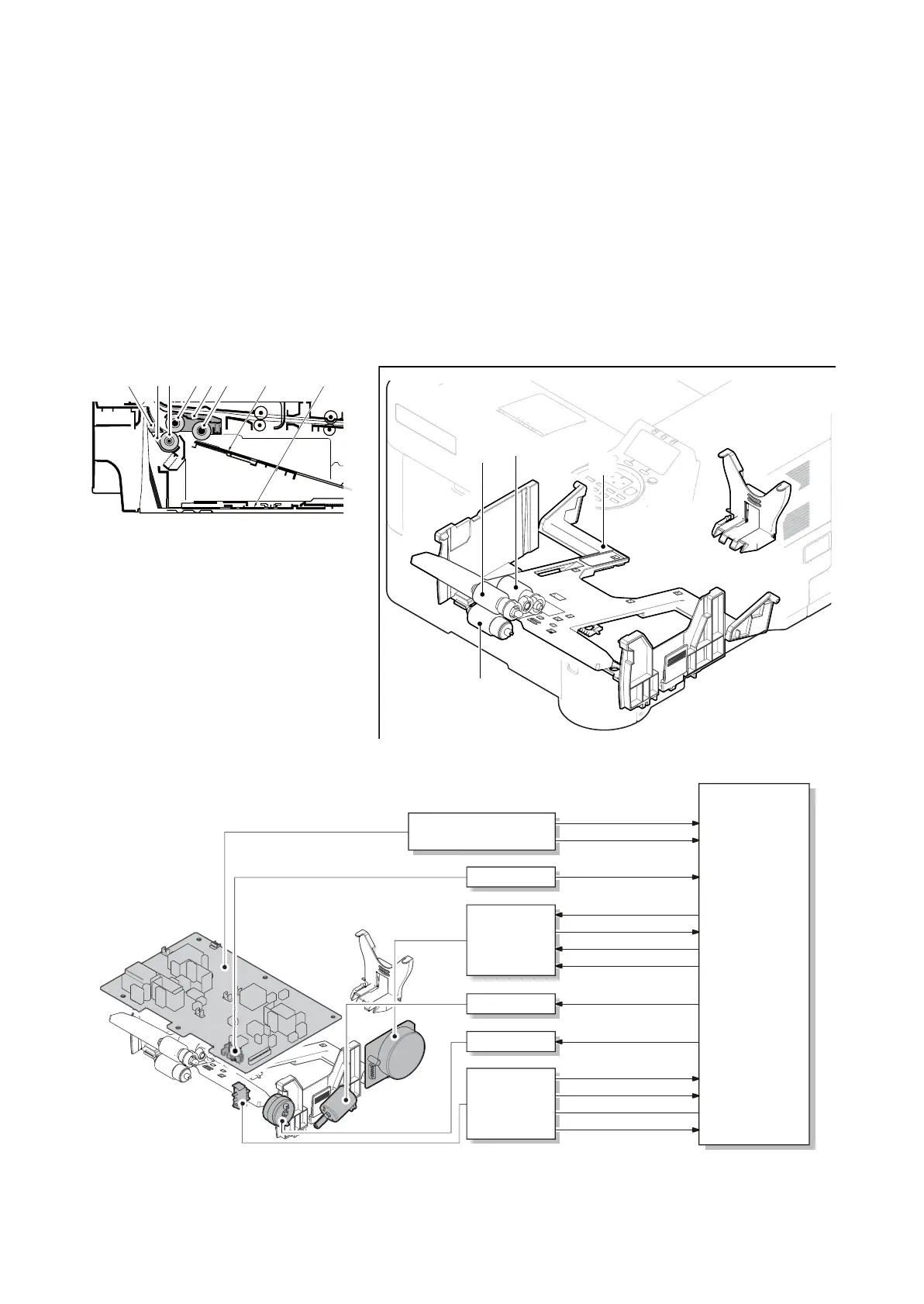

Figure 2-1-1
Figure 2-1-2
1. Paper feed roller
2. Pickup roller
3. Feed holder
4. Retard roller
5. Retard holder
6. Retard guide
7. Bottom plate
8. Cassette base
YC4-1
YC4-2
YC4-3
YC4-4
YC5-4
YC7-1
YC7-2
YC7-3
YC7-4
YC13-1
YC14-3
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
FEEDCLN
CAS3
CAS2
CASSET
CAS1
LIFTMOTOR
LSENS
6
5
4
3
PFCL
CSSW
MM
LM
LS
EPWB
YC19-11
PAPER SEN1N
HVPWB
YC19-10
P
APER SEN2N
PS1
PS2
