2-1-9 PF-4100
(1) Paper feed section
The paper feeder conveys paper from the cassette to the printer. Cassette can hold up to 500 sheets of paper.
Paper is fed from the paper feeder by the rotation of the pickup roller and paper feed roller. The retard roller
prevents multiple sheets from being fed at one time, via the torque limiter.

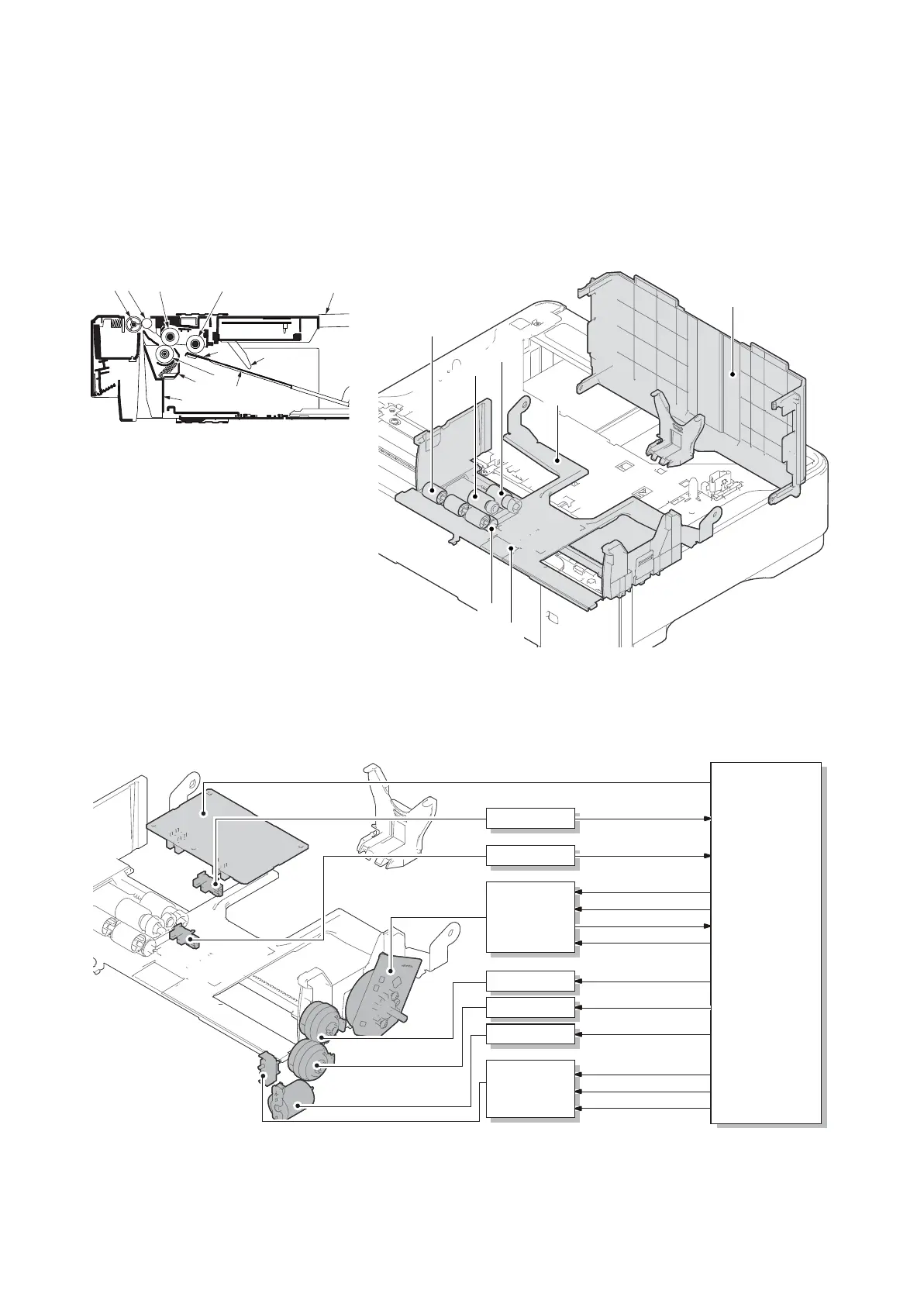

Figure 2-1-23
? 2?1?24
2
8
3
7
9
4
10
11
1
5
6
1
2
6
7
10
3
8
1. Paper feed roller
2. Pickup roller
3. Retard roller
4. Retard roller guide
5. Paper conveying roller
6. Paper conveying pulley
7. Bottom plate
8. Bottom pad
9. Cassette base
10. Cassette top cover
11. Paper gauge sensor (actuator)
YC6-4
YC6-3
YC6-2
YC6-1
YC7-2
YC2-1
YC2-2
YC2-4
YC8-2
YC1-3
TMDRVN
TMCLK
TMLOCK
TMDIR
LMOTOR
PAPSIZ0
PAPSIZ1
PAPSIZ2
FEEDCLN
OUT
PFLM
PFCSSW
PFPFM
PFPFCL
PFPFS
EPWB
YC8-4
TRANSCLN
PFFCL
YC10-3
LIFTOUT
PFLS
