2P7/2R0/3PN

1-5-27

1-5-8 Fuser section

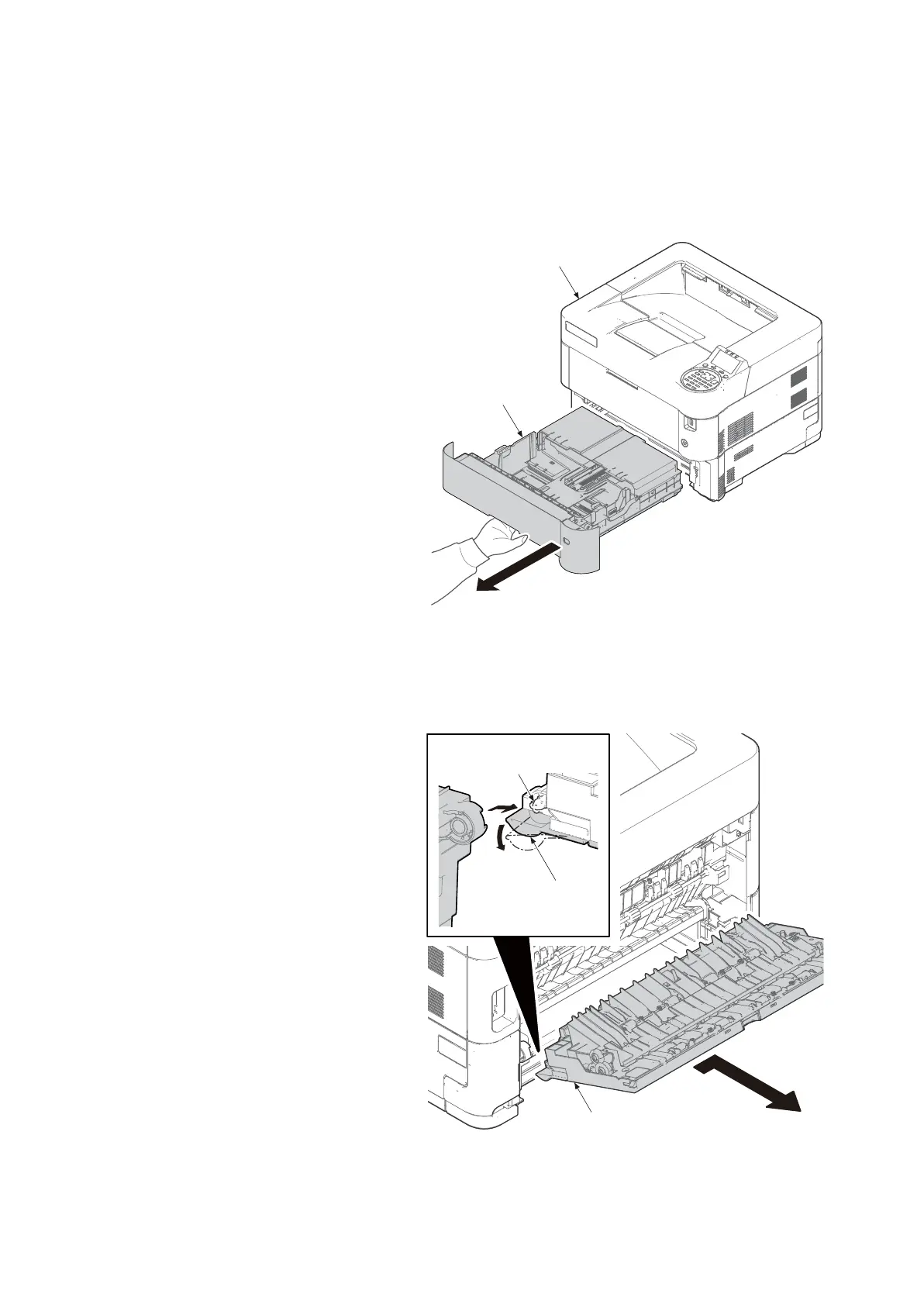

(1) Detaching and refitting the fuser unit

Procedure

1. Pull out the cassette.

Figure 1-5-48

2. Remove the fulcrum axis by sliding the

rear cover assembly while avoiding rear

cover and then remove the rear cover

assembly.

Figure 1-5-49

Cassette

Printer

Rear cover assembly

Fulcrum axis

(Rear cover assembly)

Rear cover
