2P7/2R0/3PN

1-5-58

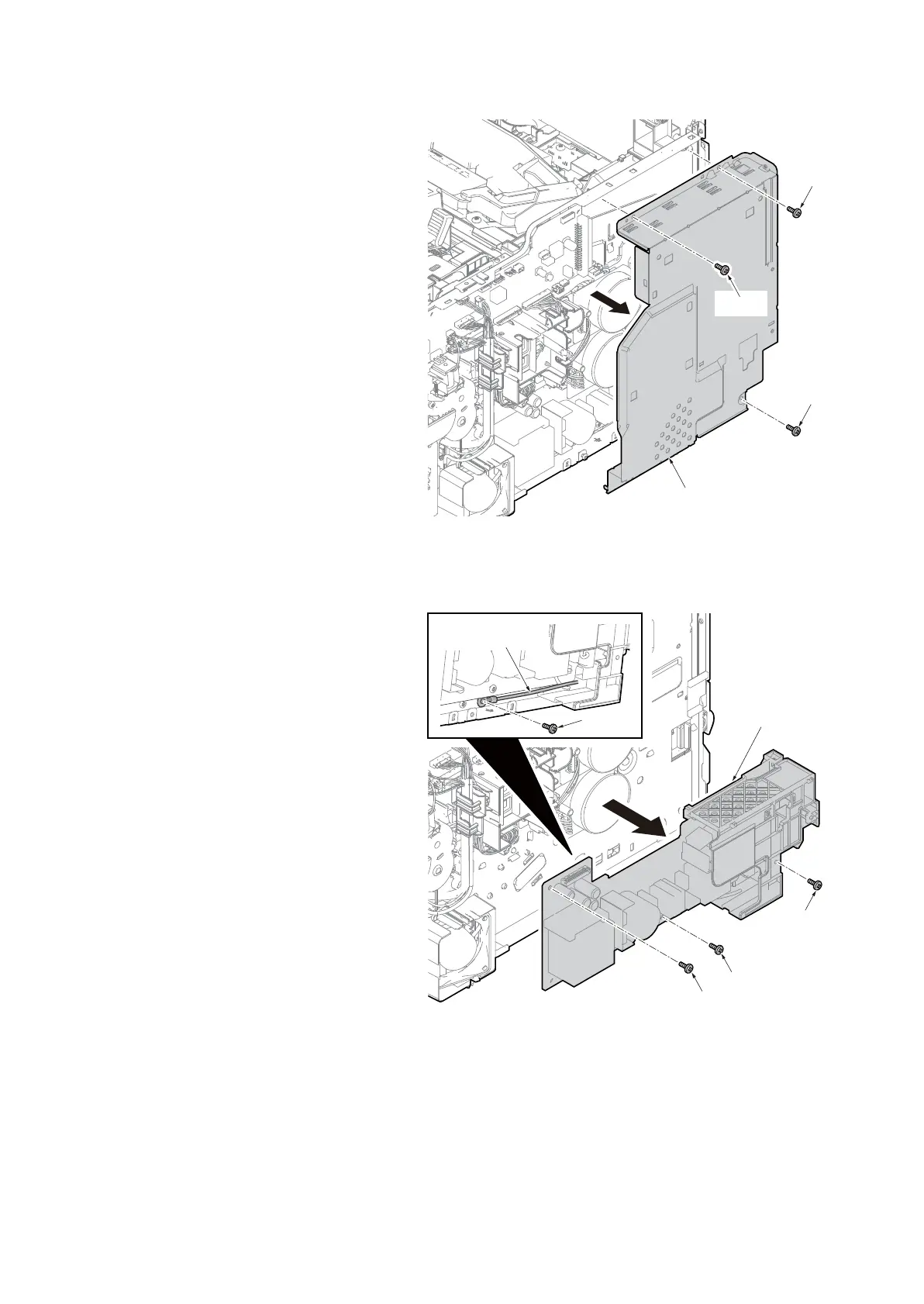

18. Remove three screws and then remove

the controller box cover.

Figure 1-5-107

19. Remove the grounding wire by remov-

ing the screw.

20. Remove three screws and then remove

the power source PWB assembly.

Figure 1-5-108

Controller box cover

Screw

Power source

PWB assembly

Screw

Grounding wire
