Kyocera ECOSYS FS-2100D Service Manual

2P7/2R0/3PN
1-5-82
8. Remove three screws.
9. Release two hooks by sliding the right
lower cover upward and then remove it.

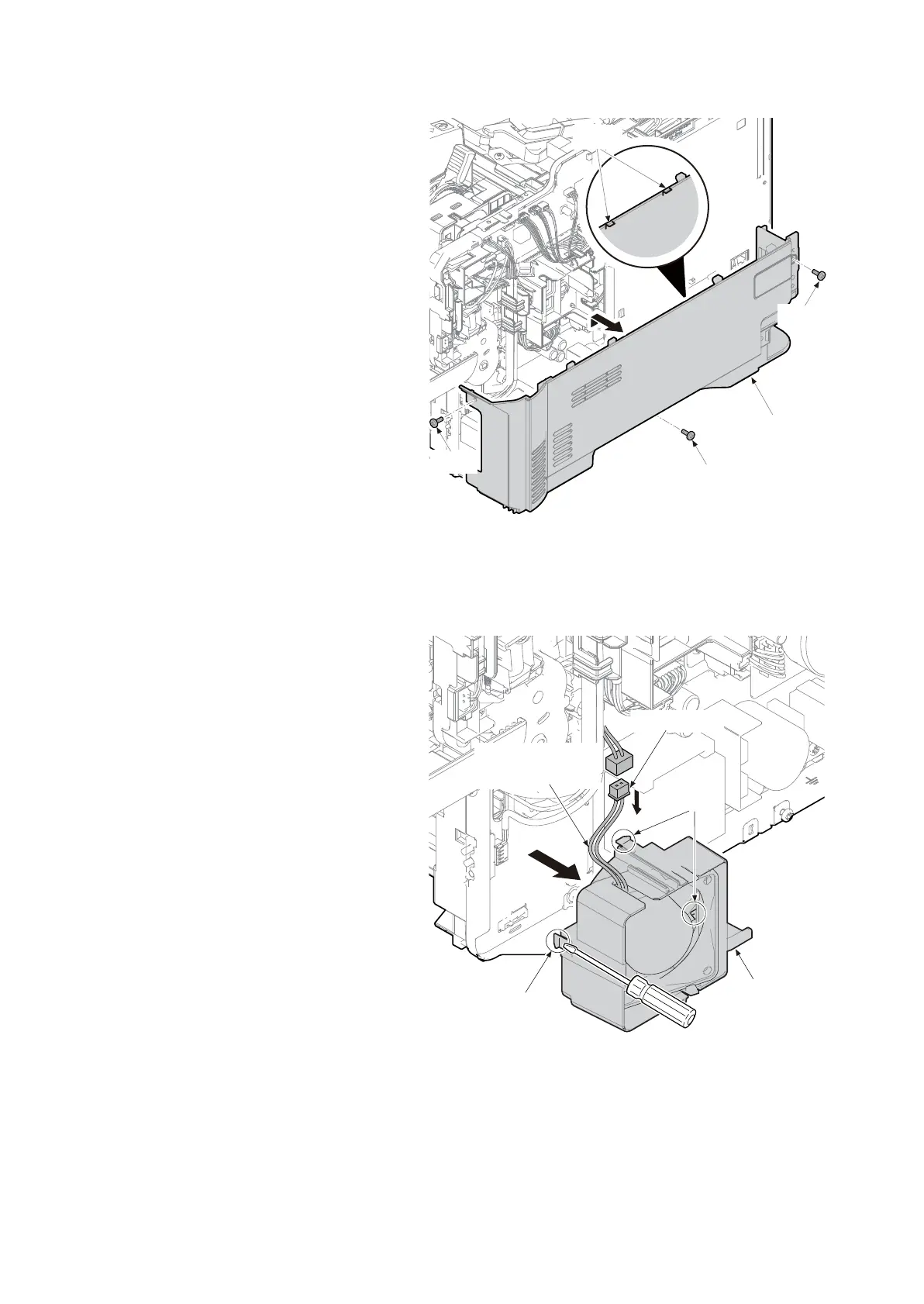

Figure 1-5-150
10. Remove the connector of the power
source fan motor wires.
11. Release three hooks using flat-blade
screwdriver and then remove the power
source fan motor assembly.
12. Check or replace the power source fan
motor and refit all the removed parts.
Figure 1-5-151
Right lower
cover
Screw
Screw
Screw
Hooks
Hook
Connector
Power source
fan motor
assembly
Power source
fan motor wires
Hooks
