2P7/2R0/3PN

1-2-11

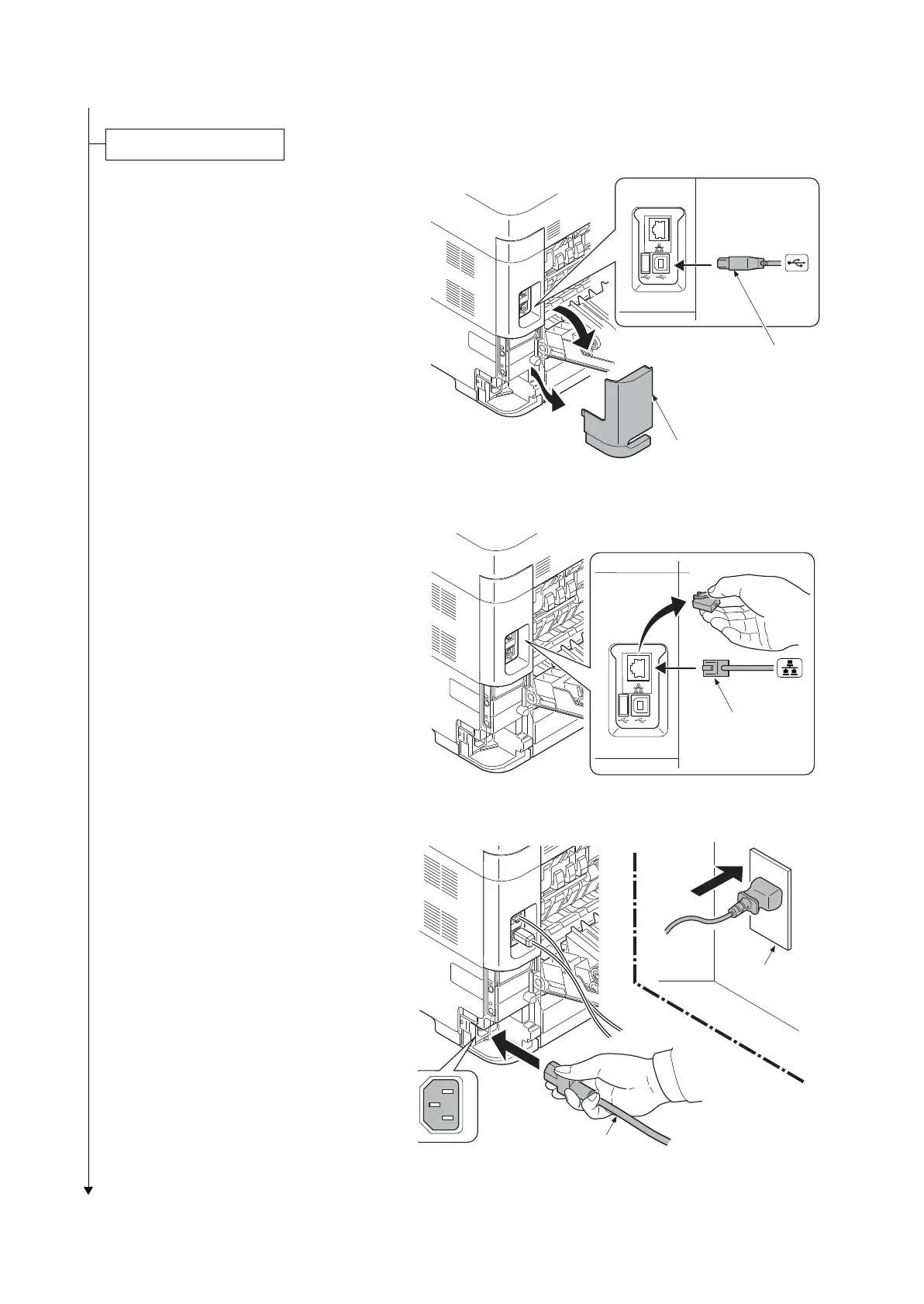

1. Open the rear cover.

2. Remove the inlet cover.

3. Connect the USB interface cable to the

printer and PC.

Figure 1-2-17

4. Connect the network interface cable to

the printerand network.

Figure 1-2-18

5. Connect the power cord to the printer

and the wall outlet.

6. Refit the inlet cover.

7. Close the rear cover.

Figure 1-2-19

Connecting the cable

USB interface cable

Inlet cover

Network

interface cable

Power cord

Wall outlet
