Kyocera ECOSYS FS-4300DN Service Manual

2LV/2L1/2L2/2MS/2MT
1-2-5

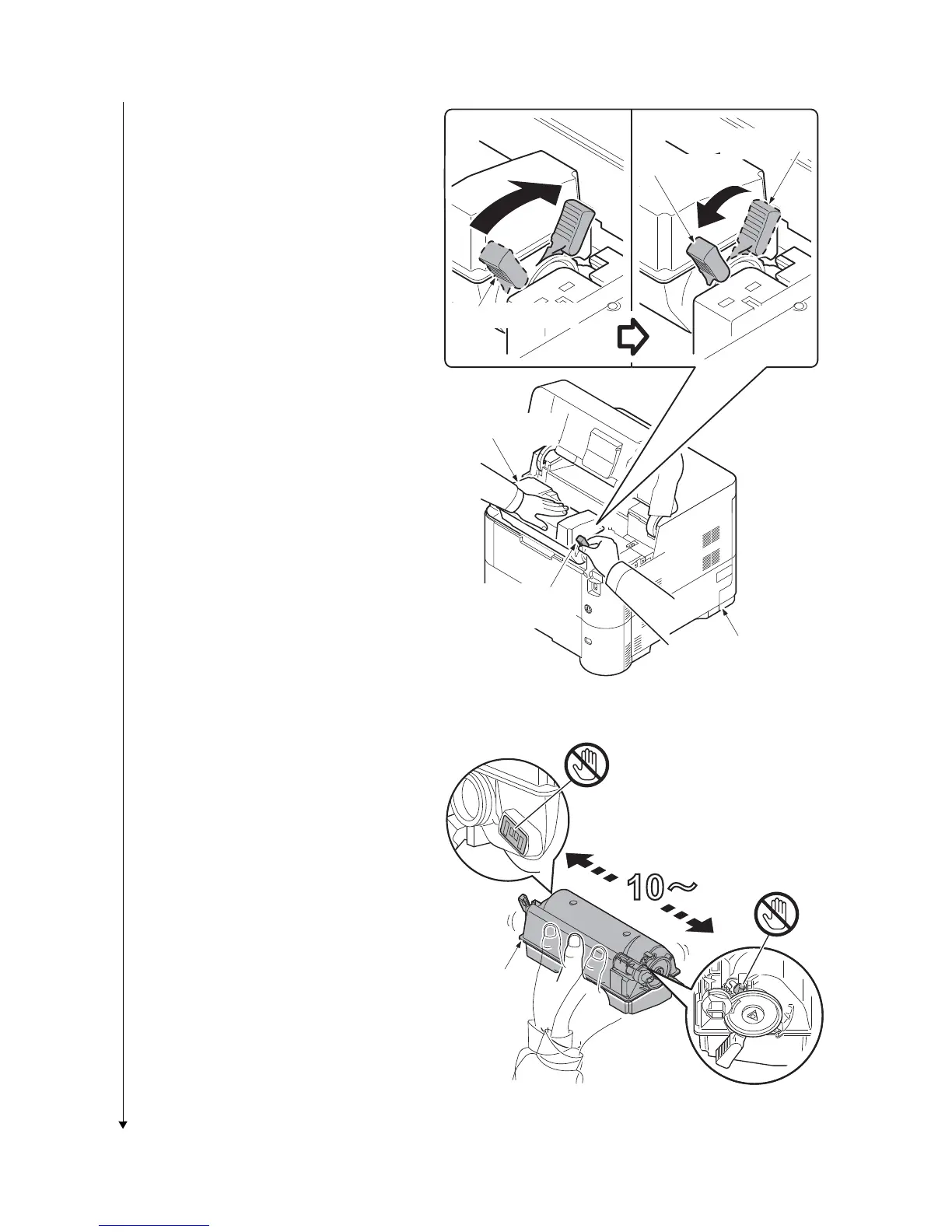

2. Rotate the toner container lock lever to
the lock position and then remove the
toner container from the printer by
returning it to the unlock position.
Figure 1-2-7
3. Shake the turned toner container 10
times or more as shown in the figure in
order to distribute the toner evenly
inside the container.
Caution:Do not press too firmly on the
center of the toner container or touch
the toner feed slot or the terminal parts.
4. Set the toner container to the printer
and then turn the toner container lock
lever to the lock position.
5. Close the top cover.
Figure 1-2-8
Unlock position
Toner container
lock lever
Lock position
Shipment position
Toner container
Printer
Terminal parts
Toner
container
Toner feed slot
