2LV/2L1/2L2/2MS/2MT
1-2-6
1. Openthe left cover.
2. Open the cap of the waste toner box.
3. Install the waste toner box.
4. Close the left cover.

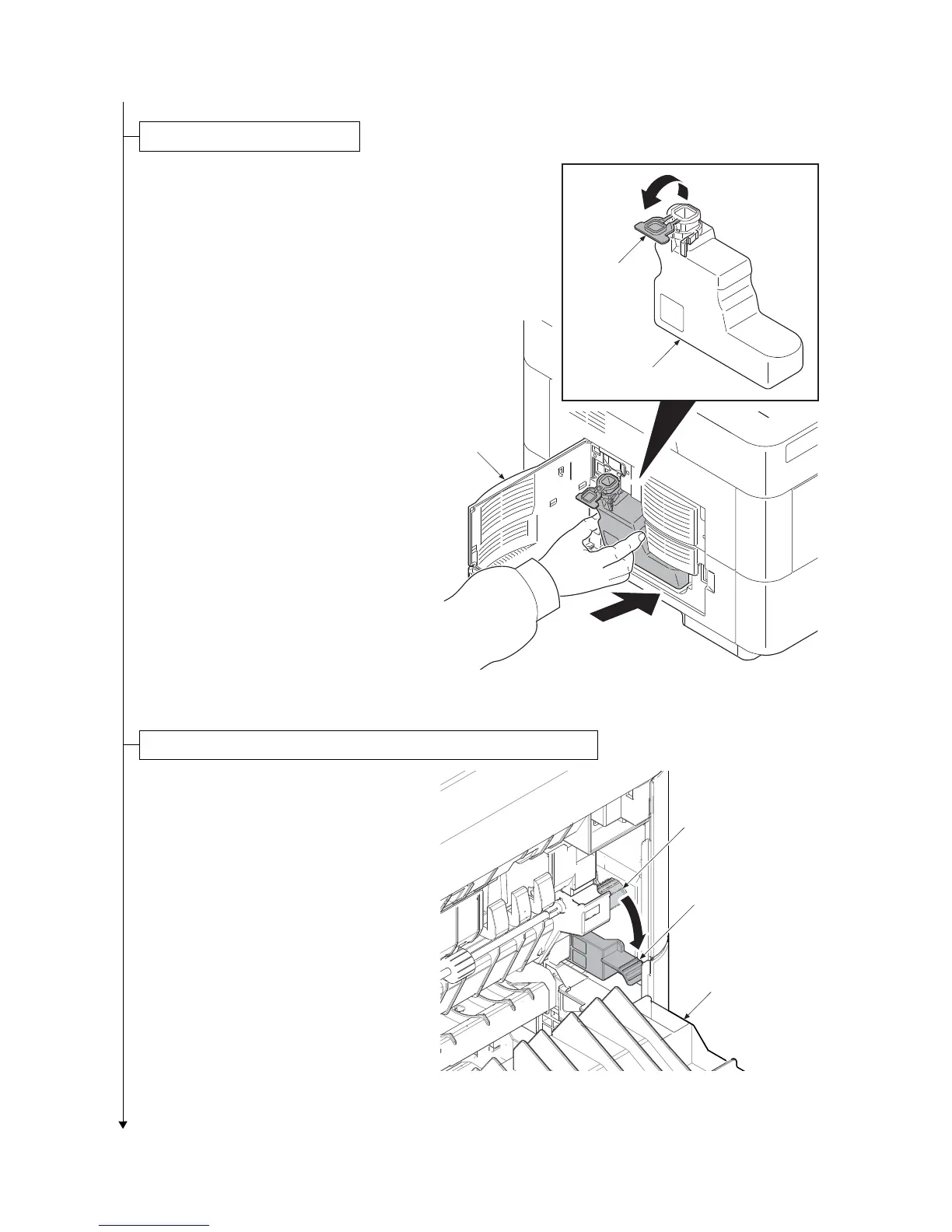

Figure 1-2-9
1. Open the rear cover.
2. Push the release lever down for
changing the lever position to a normal
position from a shipment position.
3. Close the rear cover.
Figure 1-2-10
Installing the waste toner box
Waste toner box
Cap
Left cover
Setting of the fuser pressure release lever (40 ppm model only)
Release lever
(Shipment position)
Release lever
(Normal position)
Rear cover
