2PK/2PL/2PM/2PN
1-5-18

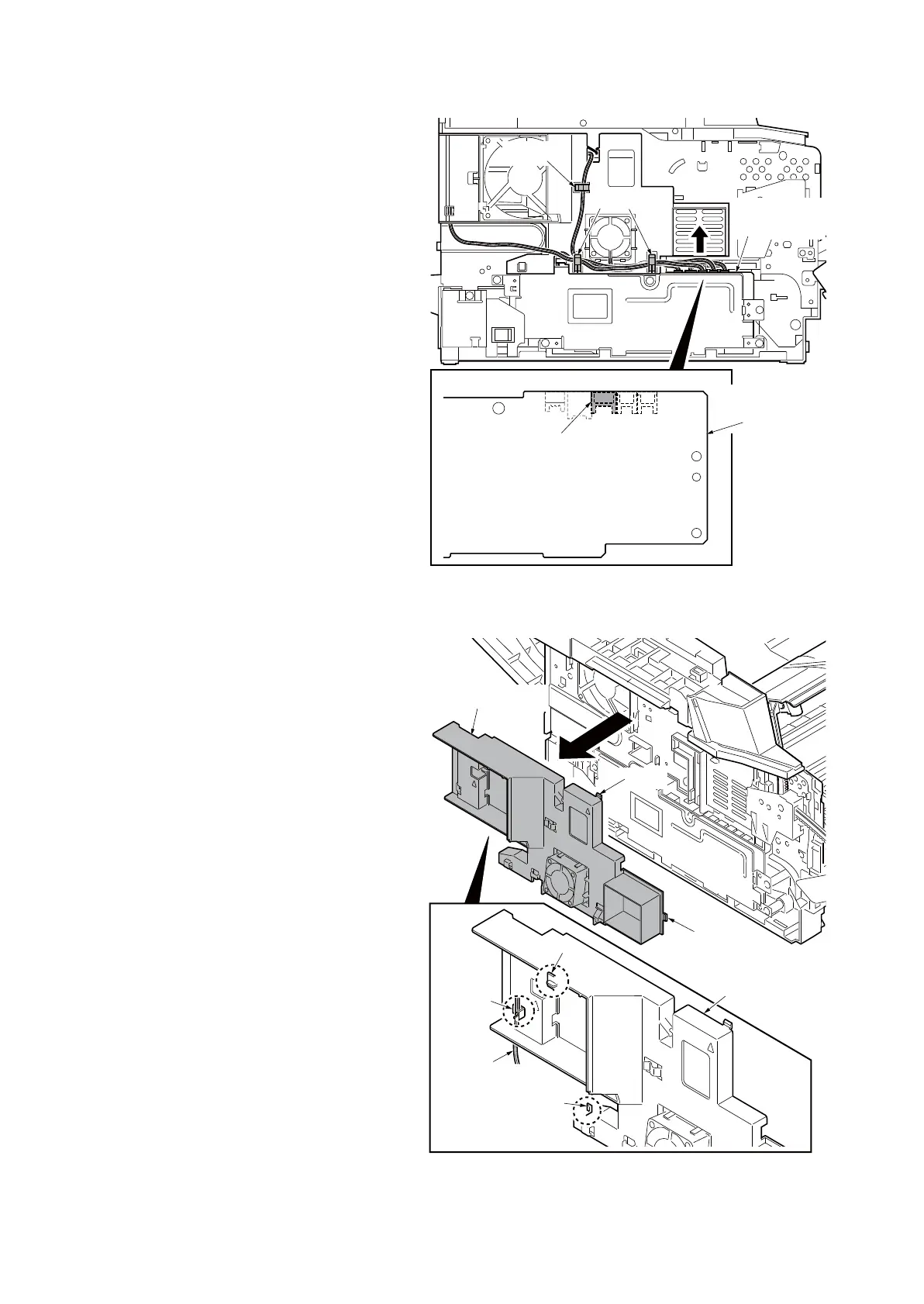

4. Remove the wires from three clamps.
5. Remove the connector from the power
source PWB.
Figure 1-5-22
6. Unhook four hooks and then remove
the frame left duct.
7. Remove the wires from the clamp.
Figure 1-5-23
Clamp
Clamps
Connector
Power source
PWB
Power source
PWB
YC106
Frame left duct
Frame left duct
Hook
Hook
Clamp
Wires
Hook
Hook
