Kyocera ECOSYS M2030dn/PN - Page 185

2PK/2PL/2PM/2PN
1-5-19

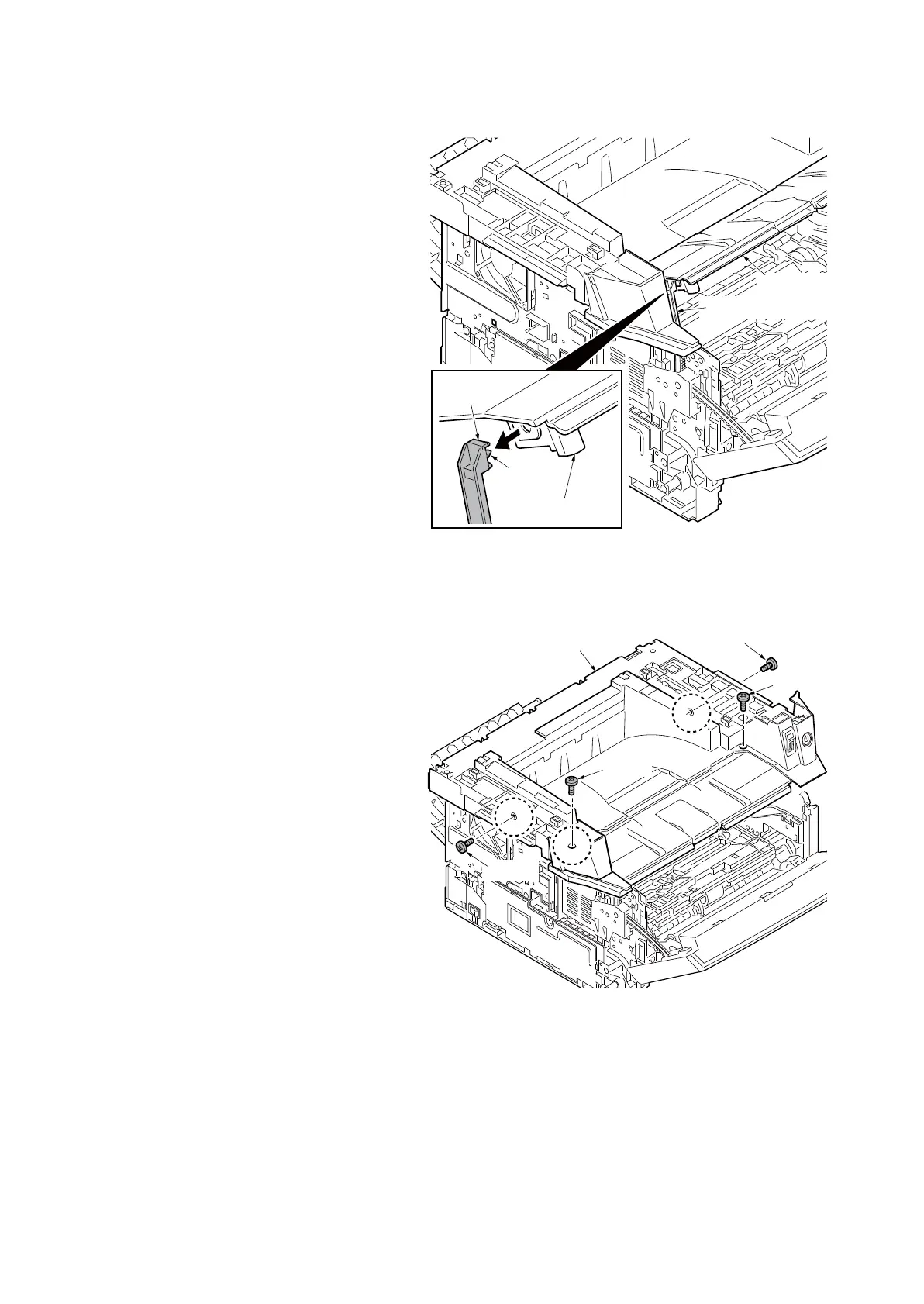

8. Release the hook and then remove the
top cover rack-L from the top cover.
Figure 1-5-24
9. Remove four screws from the top cover.
Figure 1-5-25
Top cover
rack-L
Top cover
Top cover
Top cover rack-L
Hook
Top cover
Screw
Screw
Screw
Screw
