2PK/2PL/2PM/2PN-5
1-3-38

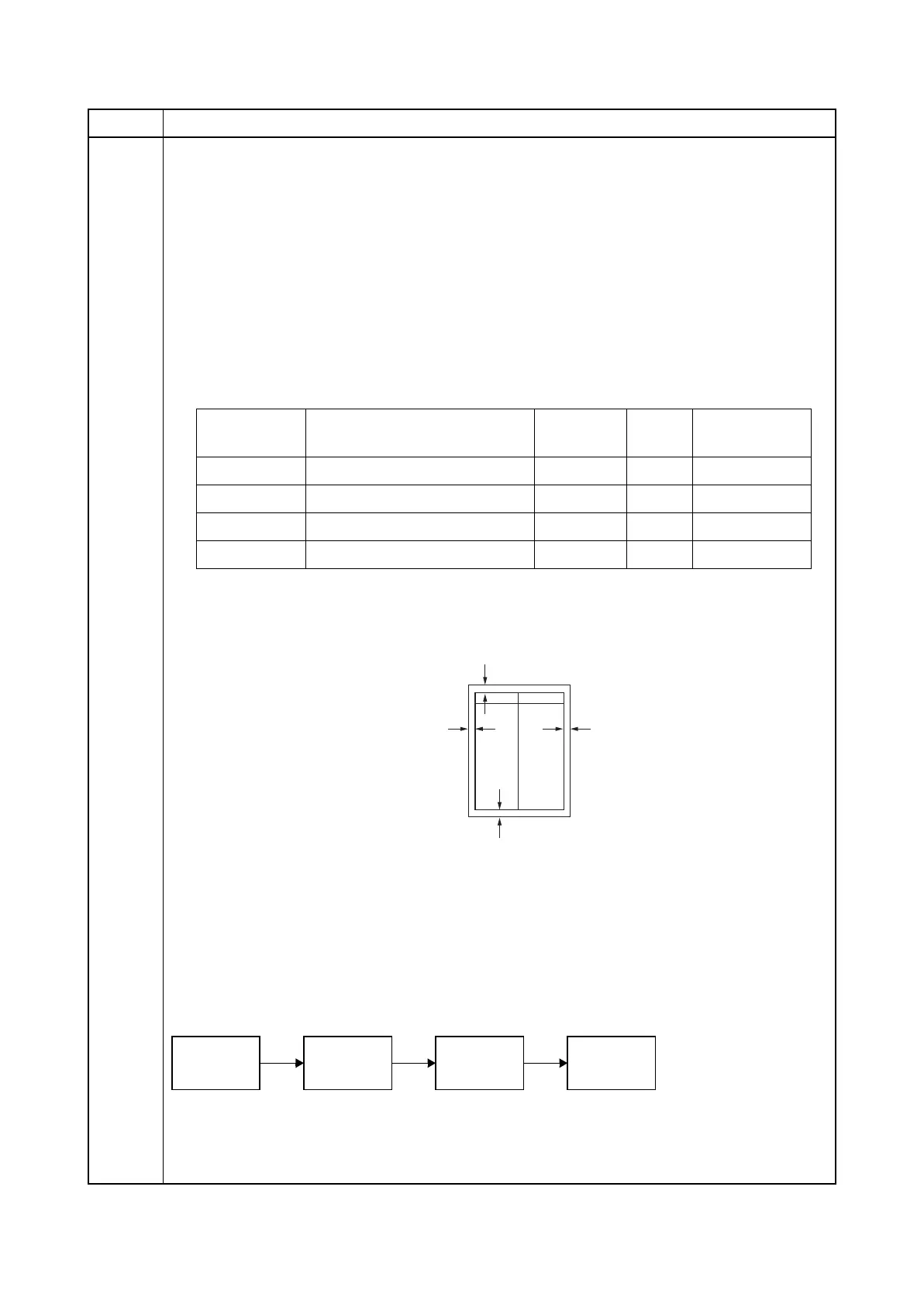

U404 Adjust Scanning Margin(DP)
Description
Adjusts margins for scanning the original from the DP.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
6. Change the setting value using the cursor left/right keys or numeric keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-14
7. Press the start key. The value is set.
Caution
If the above adjustment does not optimize the margins, perform the following maintenance
modes.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
A Margin DP left margin 0.0 to 10.0 3.0 0.5 mm
B Margin DP leading edge margin 0.0 to 10.0 2.5 0.5 mm
C Margin DP right margin 0.0 to 10.0 3.0 0.5 mm
D Margin DP trailing edge margin 0.0 to 10.0 4.0 0.5 mm
DP leading edge margin
(4.0 +1.5/-1.0 mm)
DP left margin
(2.5 +1.5/-2.0 mm)
DP right margin
(2.5 +1.5/-2.0 mm)
DP trailing edge margin
(4.0 mm or less)
U034
(P.1-3-17)
U402
(P.1-3-36)
U403
(P.1-3-37)
U404
To Next Page
