1-5-3 Paper feed section
(1) Detaching and refitting the paper feed assembly (paper feed roller and pickup
roller)
Procedure
1. Remove the cassette.

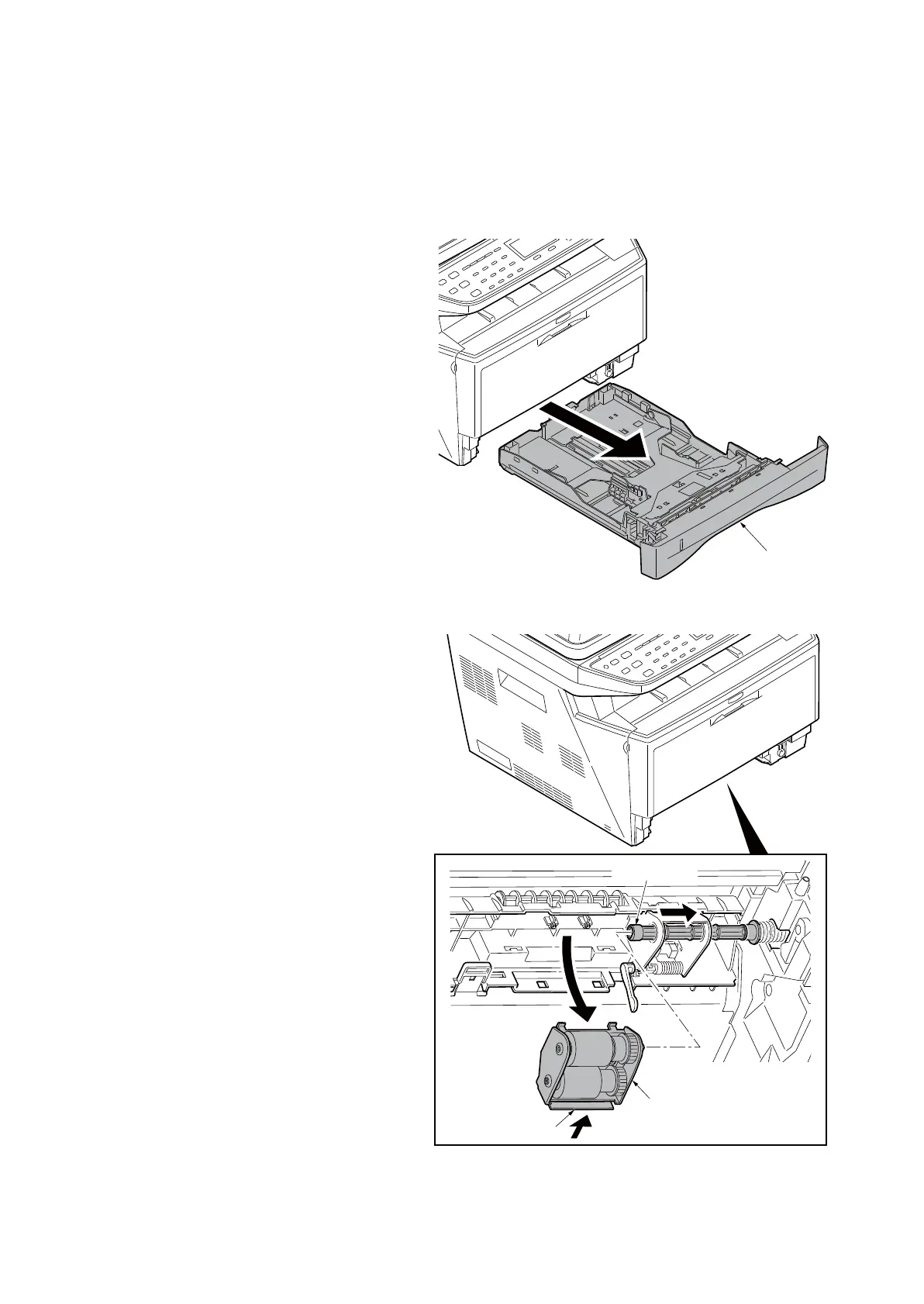

Figure 1-5-7
2. Slide the feed shaft.
3. While pressing the lever and then
remove the paper feed roller assembly.
Figure 1-5-8
Cassette
Lever
Feed shaft
Paper feed roller
assembly
