Kyocera ECOSYS M2035dn

2PK/2PL/2PM/2PN
2-1-3
(3) Paper conveying section

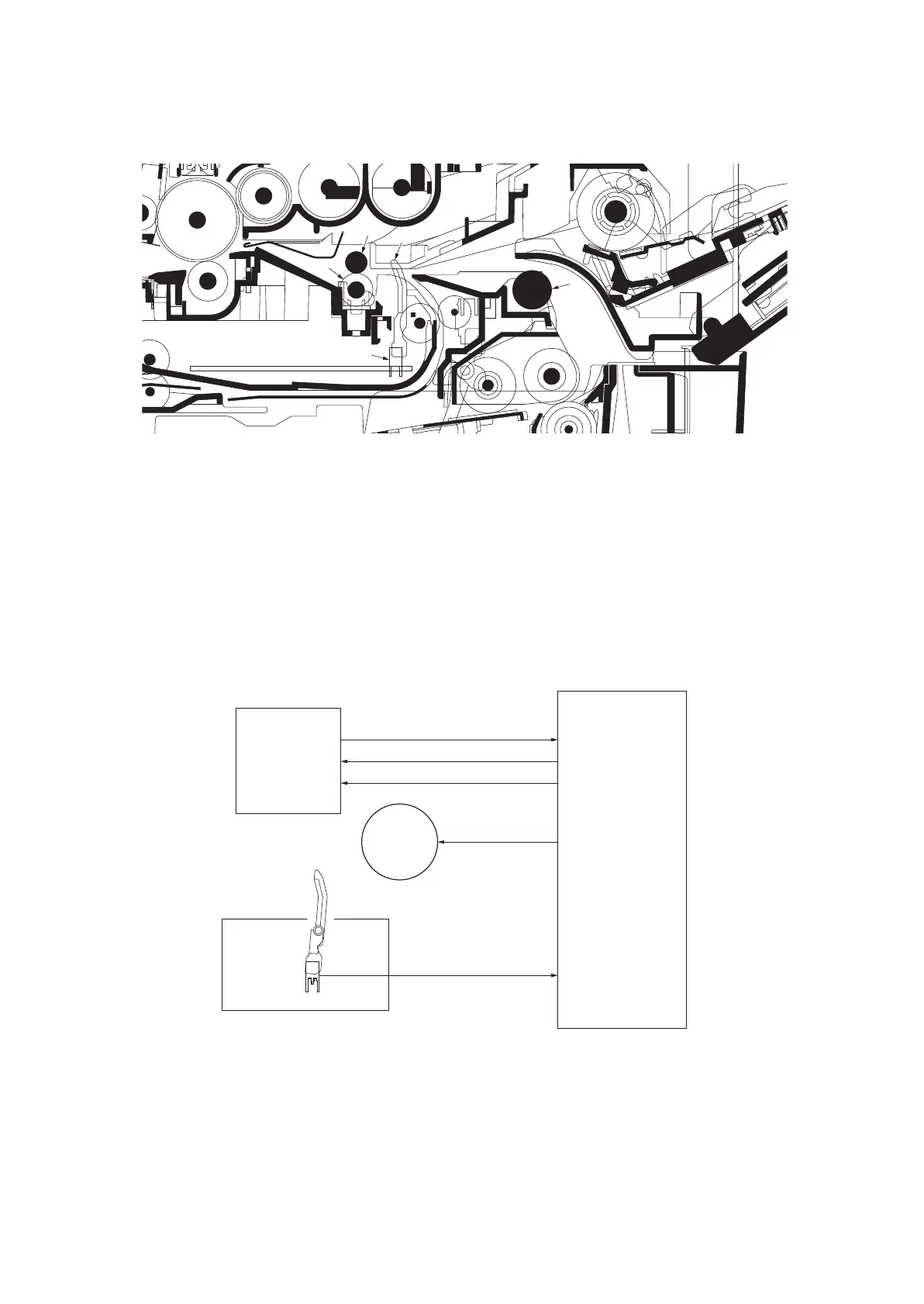

Figure 2-1-5 Paper conveying section
Figure 2-1-6 Paper conveying section block diagram
1
4
3
5
2
1. Lower registration roller
2. Upper registration roller
3. Registration sensor
4. Actuator (registration sensor)
5. Feed pulley
MMOTRDYN
REGDRN
RCL
MM
CONPWB
YC23-11
RS
HVPWB
REGN
YC20-2
MOTCLK
REMOTEN
YC17-3
YC17-4
YC17-5
