(1) Detaching and refitting the main motor
Procedure
1. Remove the right cover (See page 1-5-
3).
2. Remove the connector.
3. Remove the M3 screw and two M4
screws.
4. Remove the main motor.
5. Check or replace the main motor and
refit all the removed parts.

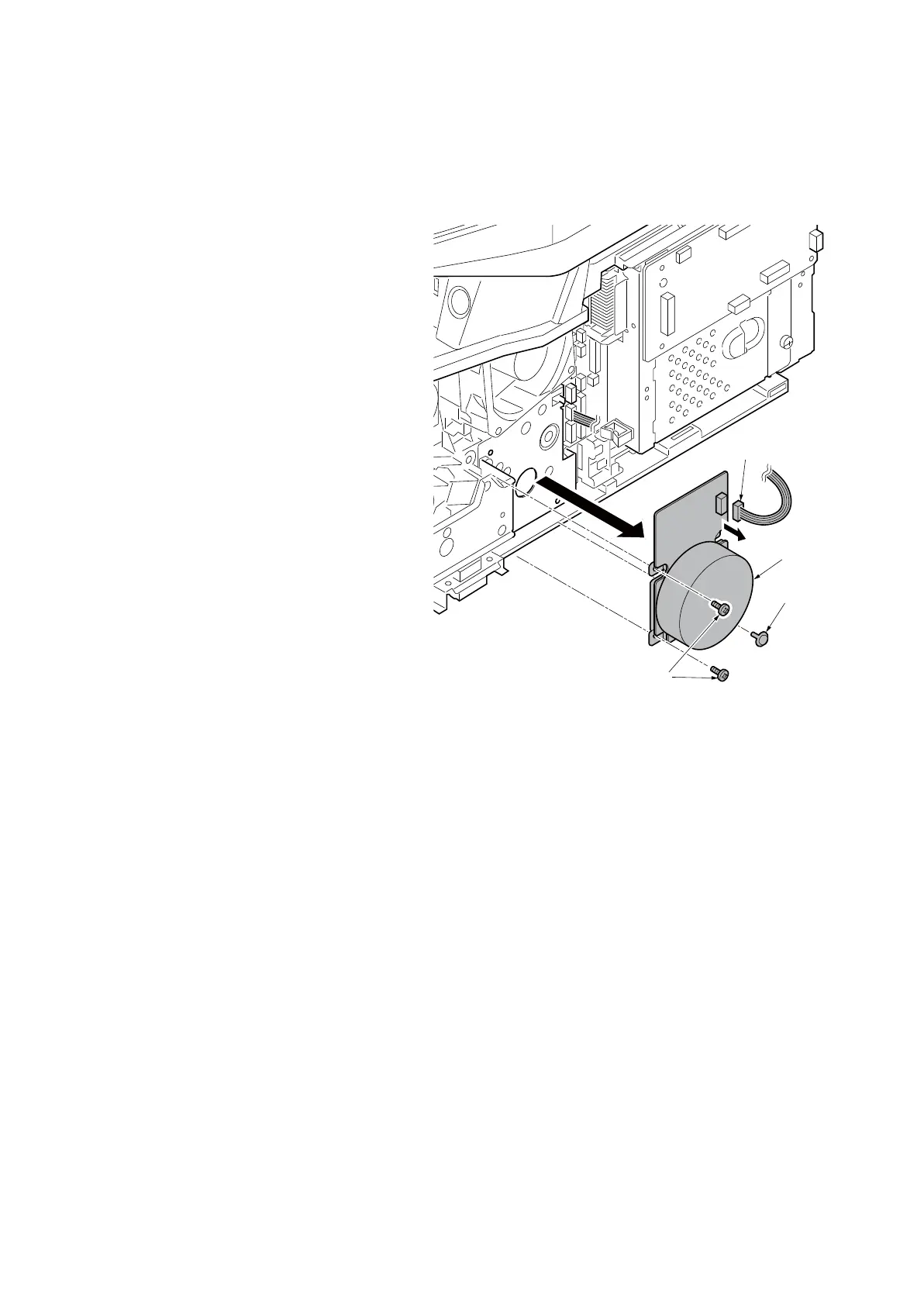

Figure 1-5-74
Main motor
Connector
M3 screw
M4 screws
