Kyocera ECOSYS M2035dn

2PK/2PL/2PM/2PN
1-5-10
(3) Detaching and refitting the MP paper feed roller
Procedure
1. Open the front cover.
2. Pull the MP feed holder (lever) down. :1
3. Slide the MP feed holder. :2
4. Remove the MP paper feed roller. :3

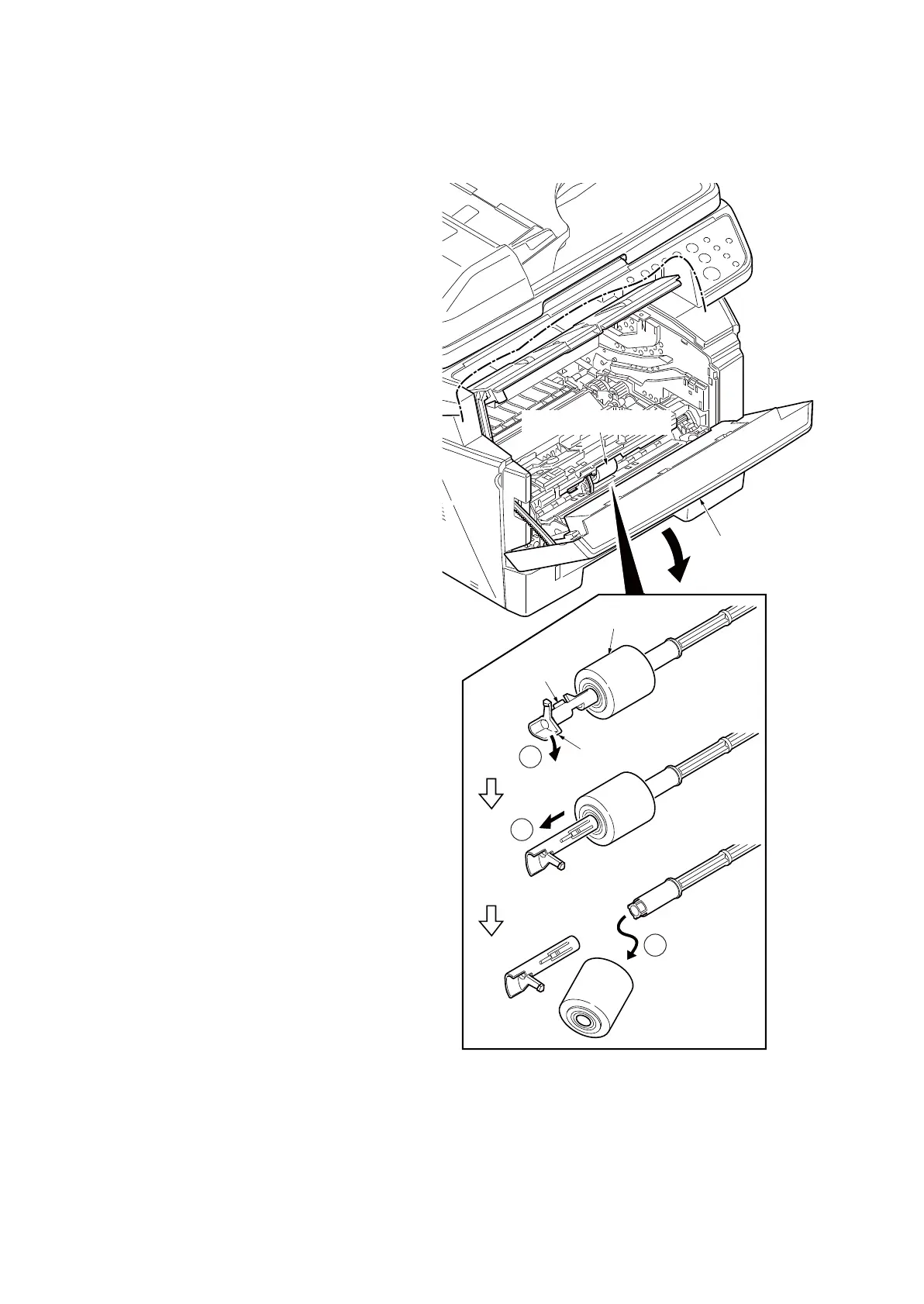

Figure 1-5-13
2
3
MP feed
holder
(Lever)
Front cover
MP paper feed
roller
MP paper feed roller
1
