(2) MP tray paper feed section

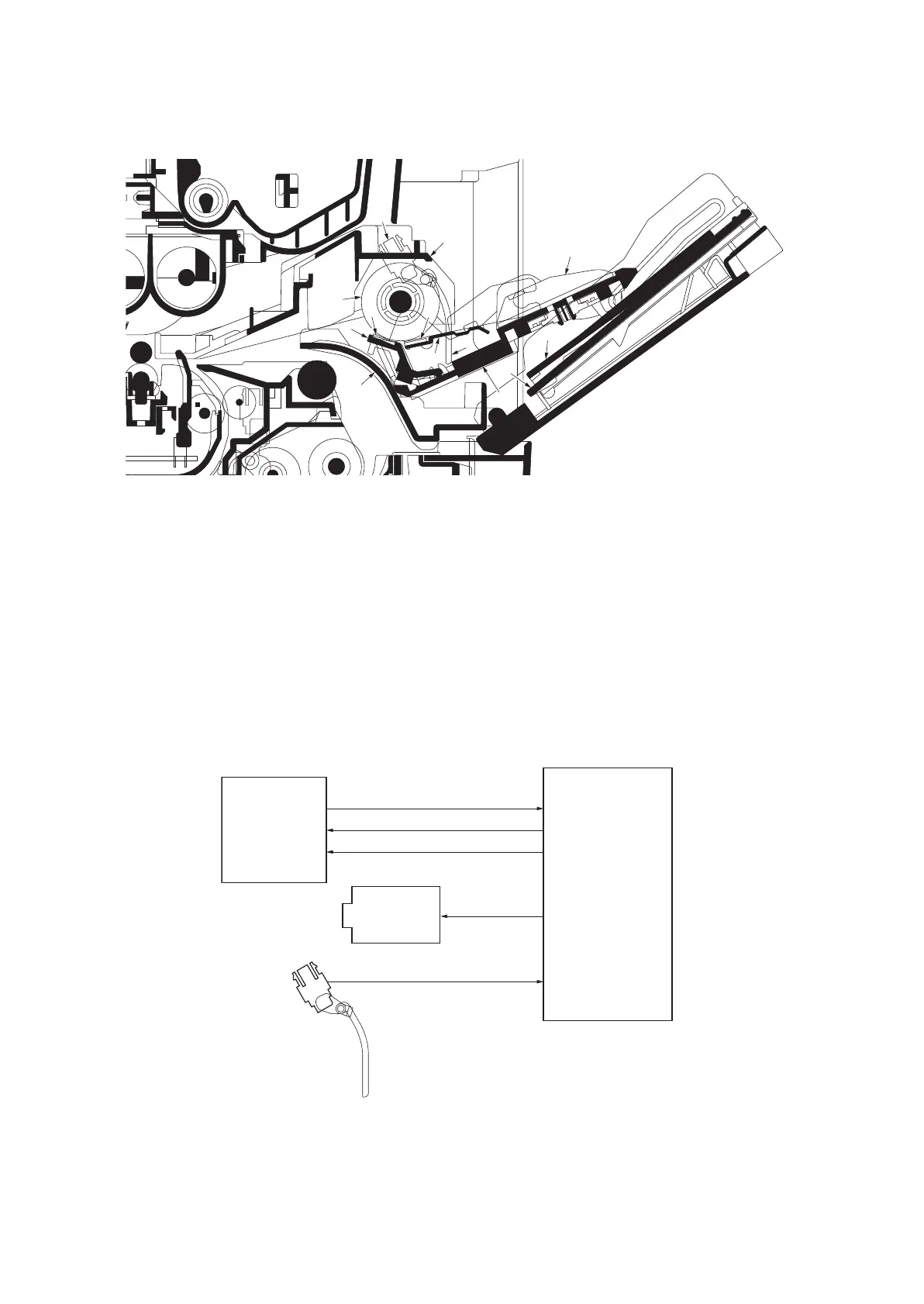

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4 MP tray paper feed section block diagram
1
2
6
8
5
9
4
7
10
11
12
3
13
1. MP paper feed roller
2. MPF separation pad
3. MPF separator
4. MPF bottom plate
5. MPF friction pad
6. MP paper sensor
7. Actuator (MP paper sensor)
8. MPF frame
9. MPF guide R/L
10. MPF base
11. MPF middle tray
12. MPF upper tray
13. MPF turn guide
MMOTRDYN
YC16-3
MPFDRN
MPPS
MPPFSOL
MM
CONPWB
HANDSN
YC21-2
MOTCLK
REMOTEN
YC17-3
YC17-4
YC17-5
