2PK/2PL/2PM/2PN
1-5-12
(4) Note on removing and Installing the upper registration roller and lower
registration roller
When reinstalling the upper registration roller or lower registration roller, be sure to use a new registration L
spring and registration R spring. Otherwise, paper feeding may be deteriorated due to the spring hooks possi-
bly being distorted during the spring is unhooked.

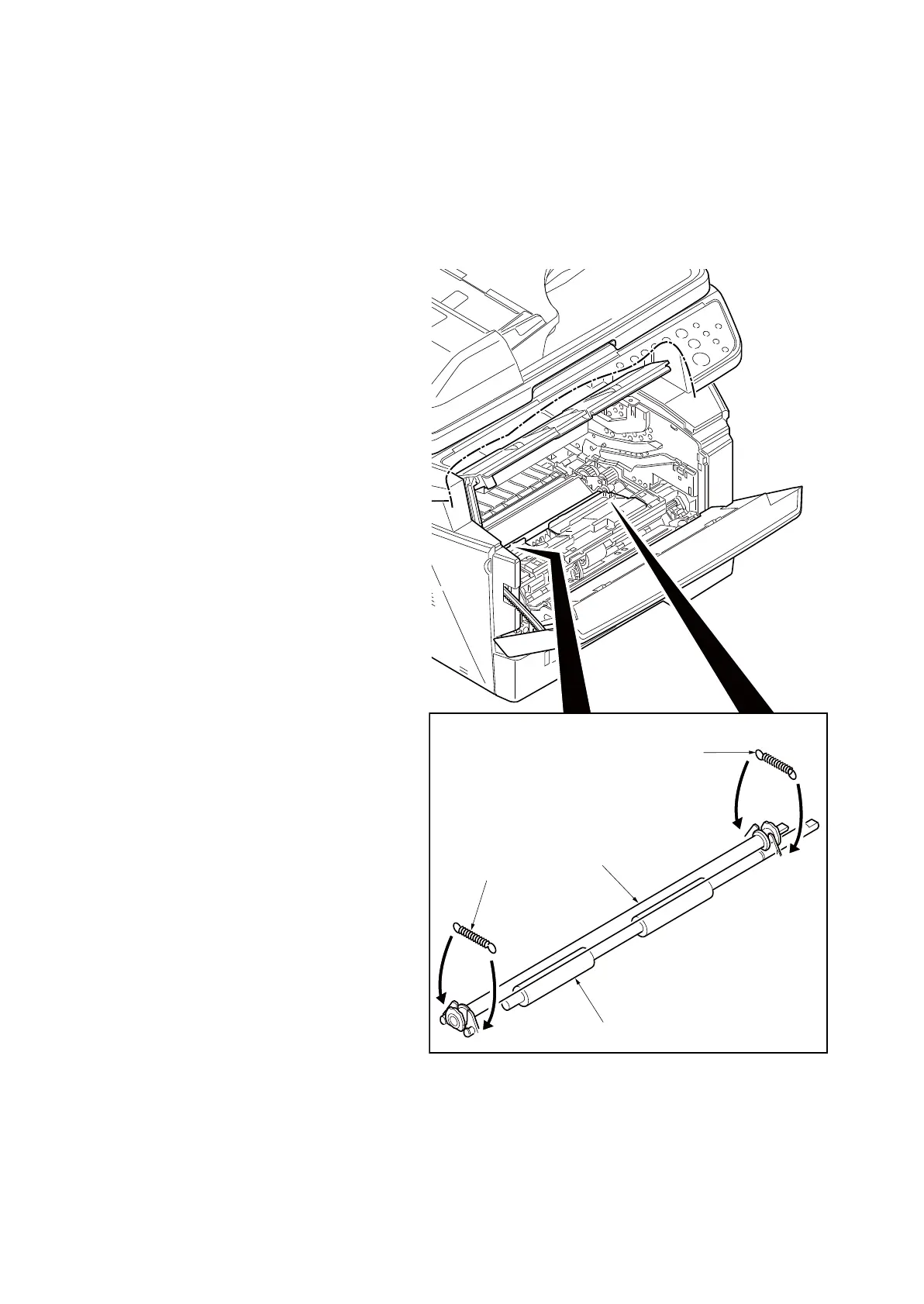

Figure 1-5-15
Upper registration roller
Lower registration roller
Registration
L spring
(New)
Registration
R spring
(New)
