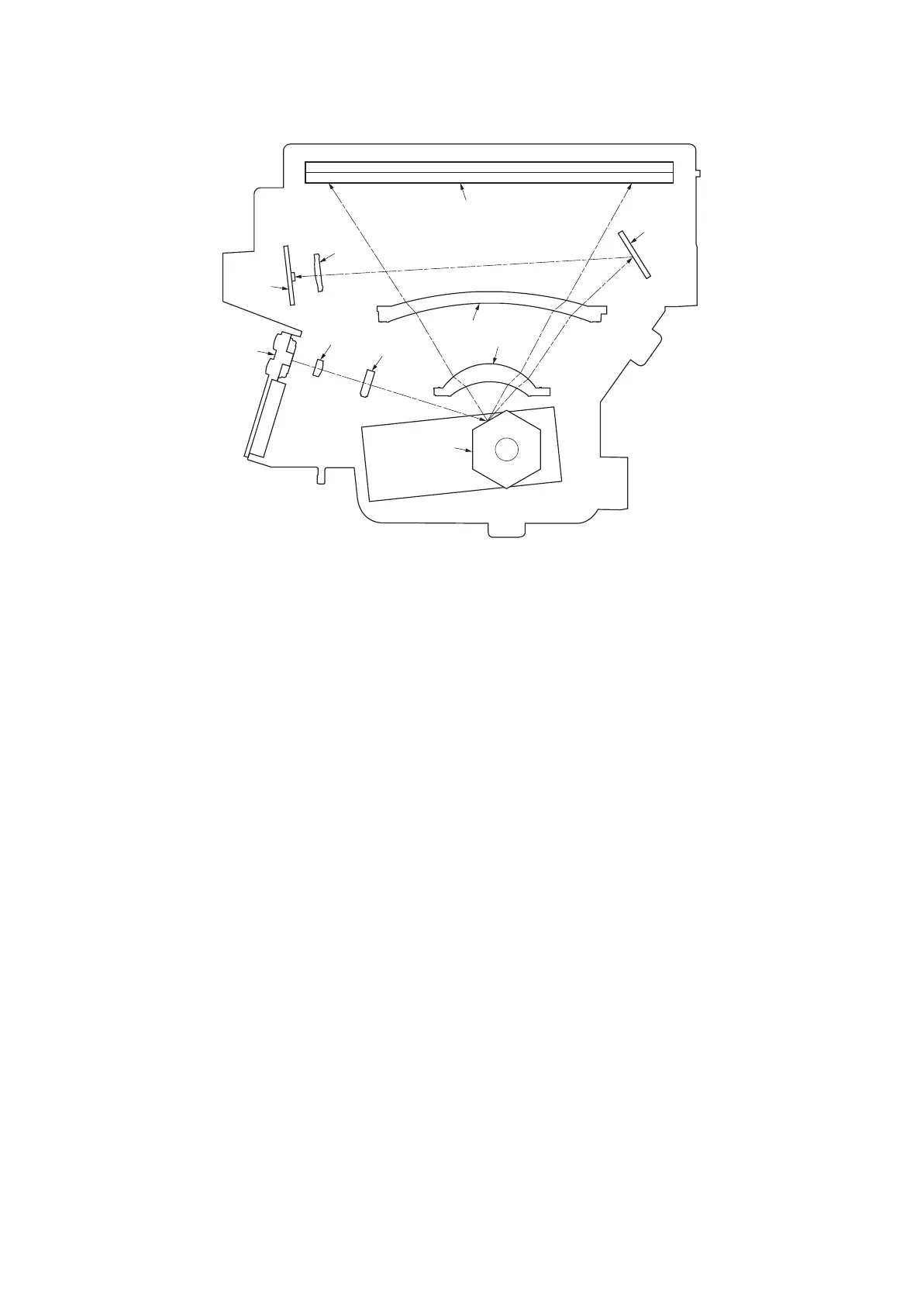

Figure 2-1-14 Laser scanner unit
1
2
3
8
9
10
4
5
6
7
1. Polygon motor (mirror)
2. Laser diode (APC PWB)
3. Collimator lens
4. Cylindrical lens
5. F-q lens
6. F-q lens
7. PD mirror
8. SOS lens
9. Pin photo diode sensor (PD PWB)
10. LSU mirror
