Kyocera ECOSYS M2035dn

2PK/2PL/2PM/2PN-5
1-3-17
U034 Adjust Paper Timing Data
Description
Adjusts the leading edge registration or center line.
Purpose
Make the adjustment if there is a regular error between the leading edges of the copy image and
original.
Make the adjustment if there is a regular error between the center lines of the copy image and
original.
Method
1. Press the start key.
2. Select the item to be adjusted.
Adjustment: [LSU Out Top]
1. Press the system menu key.
2. Press the start key to output a test pattern.
3. Press the system menu key.
4. Select the item to be adjusted.
5. Change the setting value using the cursor left/rigrt keys or numeric keys.
For output example 1, increase the value. For output example 2, decrease the value.

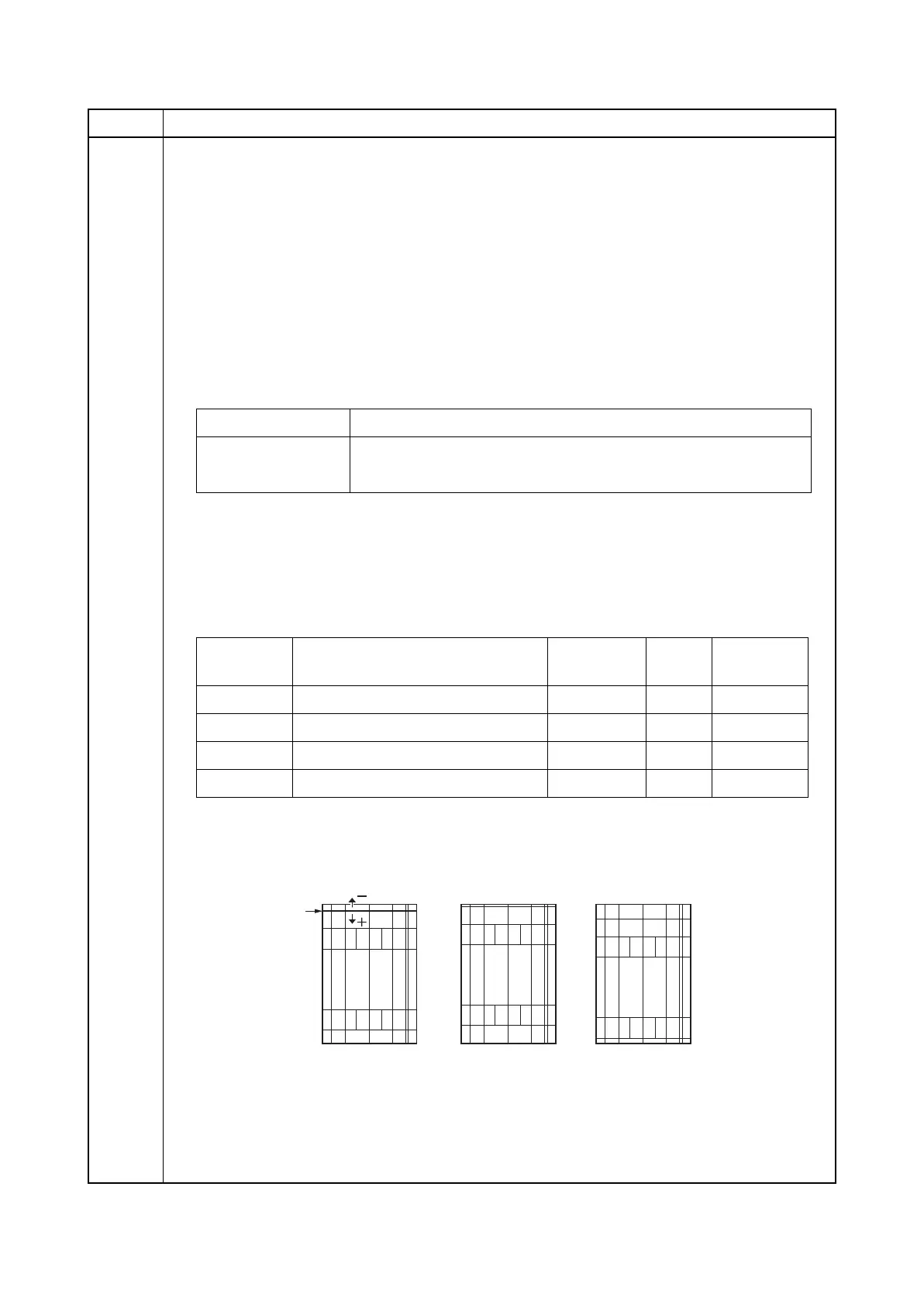

Figure 1-3-2
6. Press the start key. The value is set.
Item No. Description
Display Description
LSU Out Top Leading edge registration adjustment
LSU Out Left Center line adjustment
Display Description
Setting
range
Initial
setting
Change in
value per step
Top Standard value 0 to 1180 600 1dot
MPT Paper feed from MP tray -70 to 70 0 1dot
Cassette Paper feed from cassette -70 to 70 0 1dot
Duplex Duplex mode (second) -70 to 70 0 1dot
Correct image
Output
example 1
Output
example 2
Leading edge
registration
(20 ± 1.0 mm)
