Kyocera ECOSYS P4040dn

Appendix
A-12

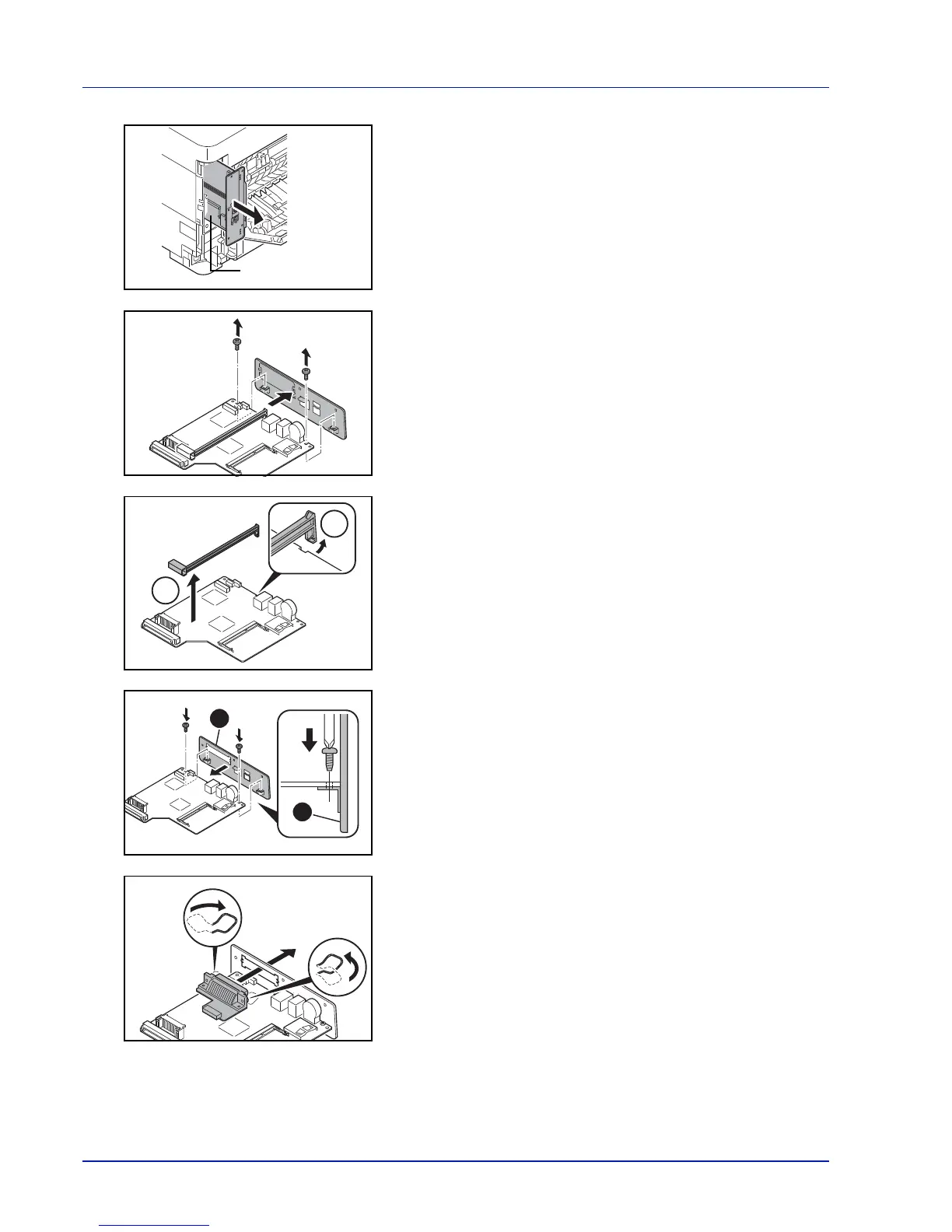

4 Pull out the main controller board gently.
5 Unscrew two screws, and remove the plate.
6 Remove the main controller board rail.
7 Attach the plate included with the option and fix it with 2 screws.
8 Attach the Parallel Interface Kit to the plate.
Main Controller Board
1
2
A
A
