2PR
1-5-34
(4) Detaching and refitting the high voltage PWB 1
Procedure
1. Remove the cassette.
2. Remove the main PWB (See page 1-5-27).
3. Remove the left rear cover and left front
cover (See page 1-5-3).
4. Remove the right rear cover and right front
cover (See page 1-5-6).
5. Remove the laser scanner unit (See page 1-
5-42).
6. Remove the engine PWB (See page 1-5-
28).

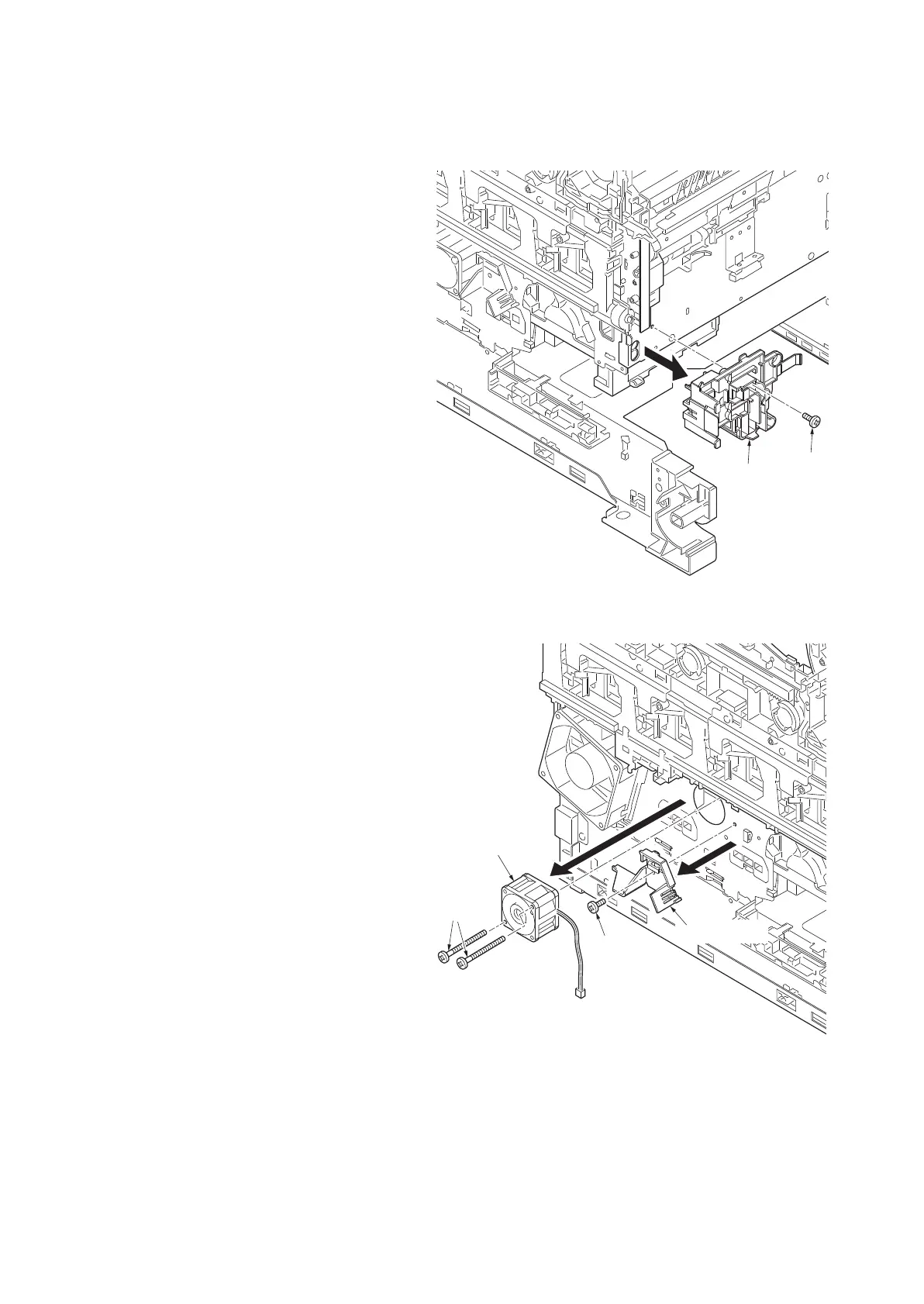

7. Remove the screw and then remove the HV
contact assembly K.
Figure 1-5-44
8. Remove two screws and then remove the
LSU fan motor.
9. Remove the screw and the remove the left
fan holder.
Figure 1-5-45
Screw
HV contact
assembly K
Screw
Screws
LSU fan motor
Left fan holder
To Next Page
