Kyocera ECOSYS P7035cdn Service Manual

2PR
1-4-30

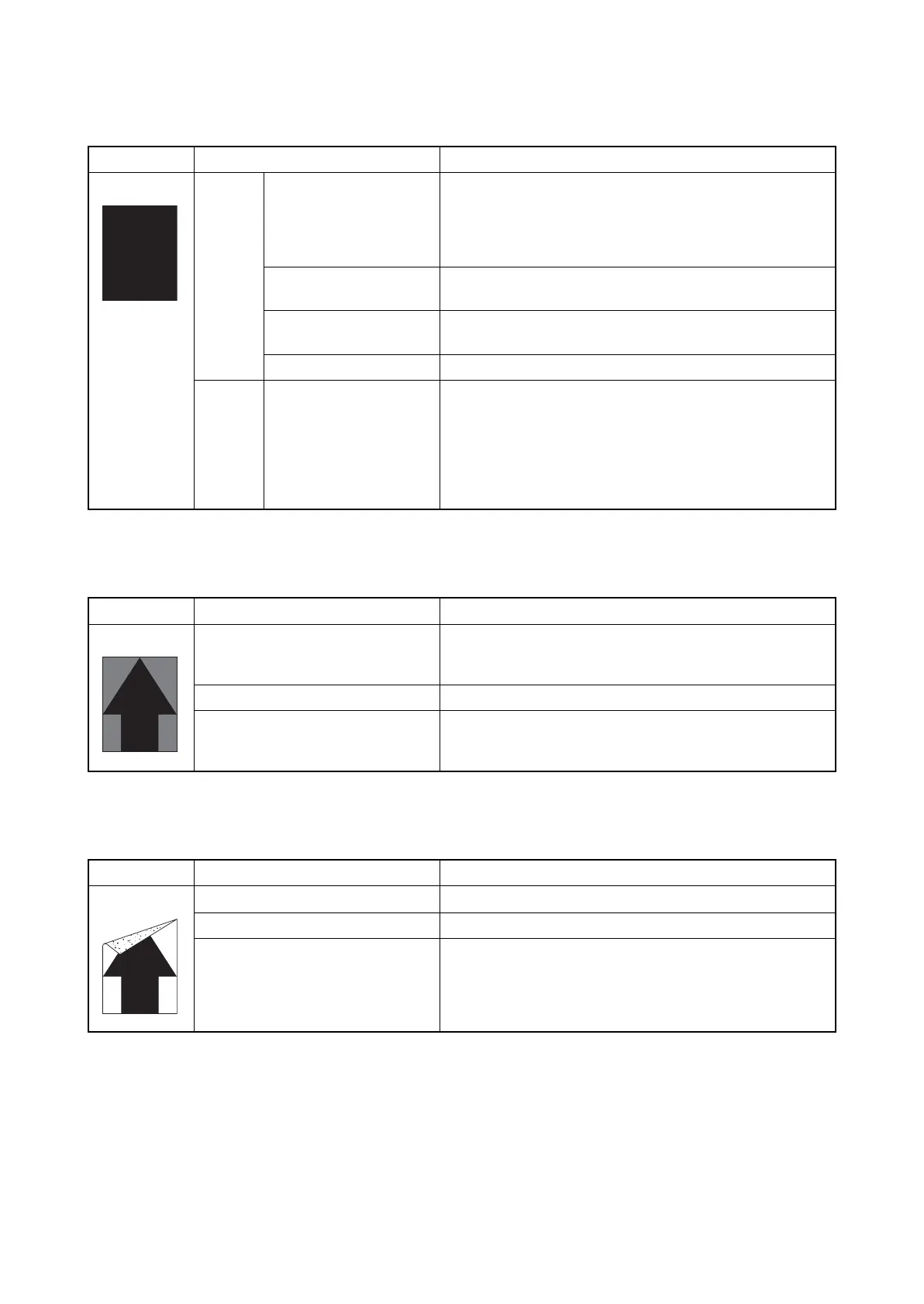

(2) No image appears (entirely black).
(3) A specific color is printed solid.
(4) The back side gets dirty.
Print example Causes Check procedures/corrective measures
No main
charging.
Defective harness
between high voltage
PWB and engine PWB
(YC600), or improper con-
nector insertion.
Reinsert the connector. Also check for continuity within the
connector harness. If none, remedy or replace the harness.
Defective main charger
unit.
Replace the main charger unit or drum unit (See page 1-5-15,
1-5-14).
Defective high voltage
PWB 1.
Replace the high voltage PWB 1 (See page 1-5-34).
Defective engine PWB. Replace the engine PWB (See page 1-5-28).
The laser
is acti-
vated
simulta-
neously
for all
colors.
Defective laser scanner
unit.
Replace the laser scanner unit (See page 1-5-42).
Print example Causes Check procedures/corrective measures
Defective main charger unit which
corresponds to the color causing the
problem.
Check if the main charger unit is properly seated. If necessary,
reseat it properly (See page 1-5-15).
Disconnected main charger wire. Replace the main charger unit (See page 1-5-15).
Laser of laser scanner unit for solid
color printing is ON.
Defective laser scanner unit.
Replace the laser scanner unit (See page 1-5-42).
Print example Causes Check procedures/corrective measures
Dirty secondary transfer roller. Clean the secondary transfer roller.
Dirty paper conveying path. Clean the paper conveying path.
Dirty heat roller and fuser belt. Clean the heat roller and fuser belt.

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
