Appendix A Option Units
A-4
Insert the hard disk into its slot on the main circuit board of
the printer. If a hard disk unit is installed in the printer, re-
ceived data can be rasterized and stored on this hard disk.
This enables high-speed printing of multiple copies using an
electric sort function. Also, you can use the e-MPS functions.
For details, see
e-MPS on page 3-12
.
For details on available hard disks, see your dealer.
Turn off the printer and disconnect the power cord
and printer cable.
Remove the two screws and remove the slot cover
(HDD).

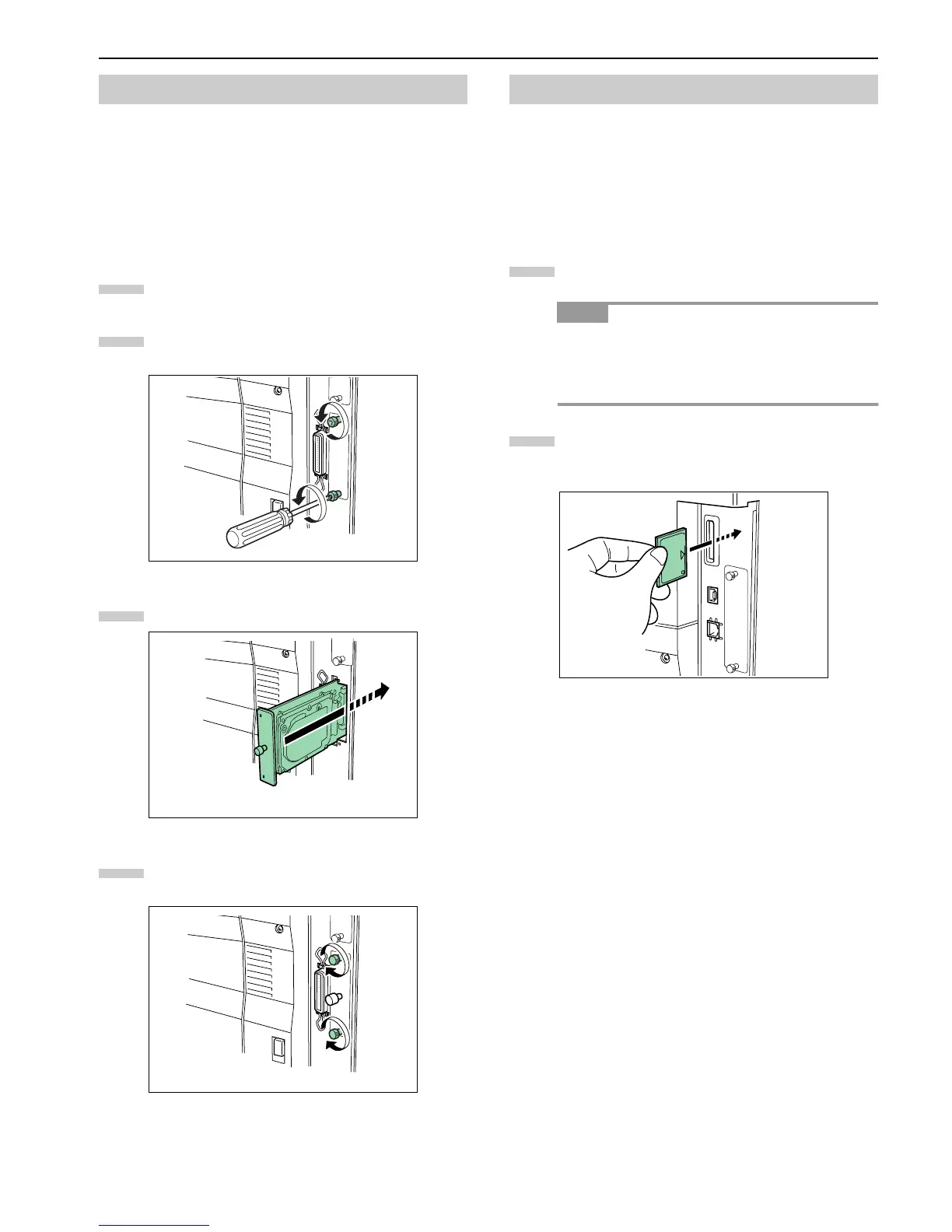

Figure A-8
Insert the optional hard disk unit into the slot.
Figure A-9
Tighten the two screws to secure the hard disk unit
to the main circuit board.
Figure A-10
Insert the memory card into the memory card slot located on
the right side of the printer. A memory card is a microchip
card that may contain option fonts, macros, forms, etc. The
printer reads the contents of the card into its internal memo-
ry when printer is turned on.
For details of available memory cards, see your dealer.
Turn off the printer.
Do not insert or remove a memory card while the
power is on. If the memory card is removed while the
printer is on, damage could result in the printer’s
electronics or the memory card.
Insert the memory card in the slot. Insert it with its
label surface facing toward the outside, connector
end first. Push it in all the way.
Figure A-11
2.4 Hard Disk
1
2
3
4
2.5 Memory Card
NOTE
1
2
