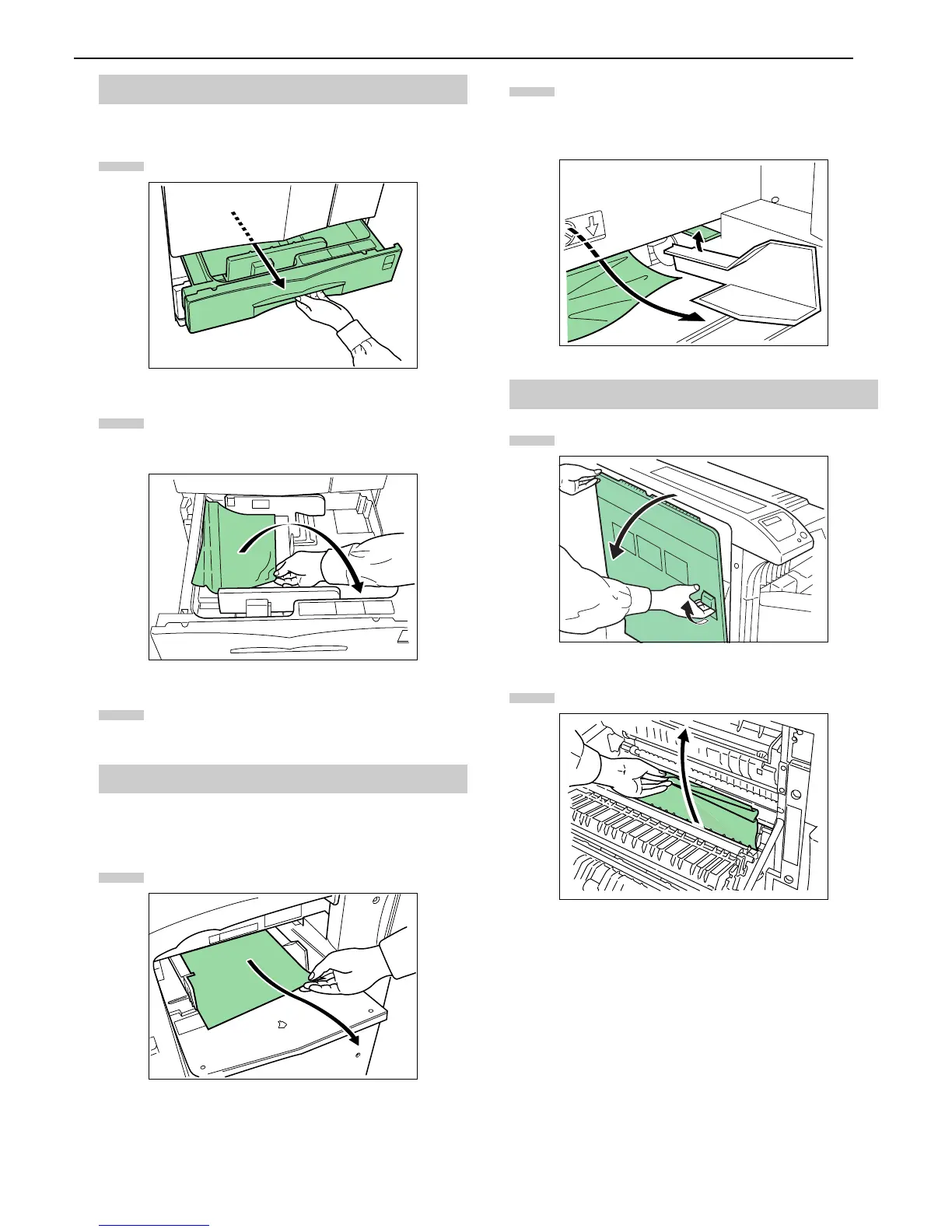

Chapter 4 Troubleshooting
4-9
The following procedure also applies to the optional paper feeder.
Pull out the paper cassette.
Figure 4-1
Remove the jammed paper while taking care not to
tear it. If the paper has been torn, remove all the
scraps from the inside the printer.
Figure 4-2
Close the paper cassette.
Paper is jammed at the MP tray. Remove the jammed paper
using the procedure given below.
Remove the paper jammed at the MP tray.
Figure 4-3
If the jammed paper remains at the MP tray, pull up
the lever and remove the jammed paper.
*If the mised paper cannot be removed, go to the
next step.
Figure 4-4
Pull up the lock lever and open left cover 1.
Figure 4-5
Remove the jammed paper.
Figure 4-6
4.1 Jam in Paper Cassette
4.2 Jam at the MP Tray
1
2
3
1
4.3 Jam inside the MP transport
2
1
2
To Next Page
