CHAPTER 4 TROUBLESHOOTING
4-10

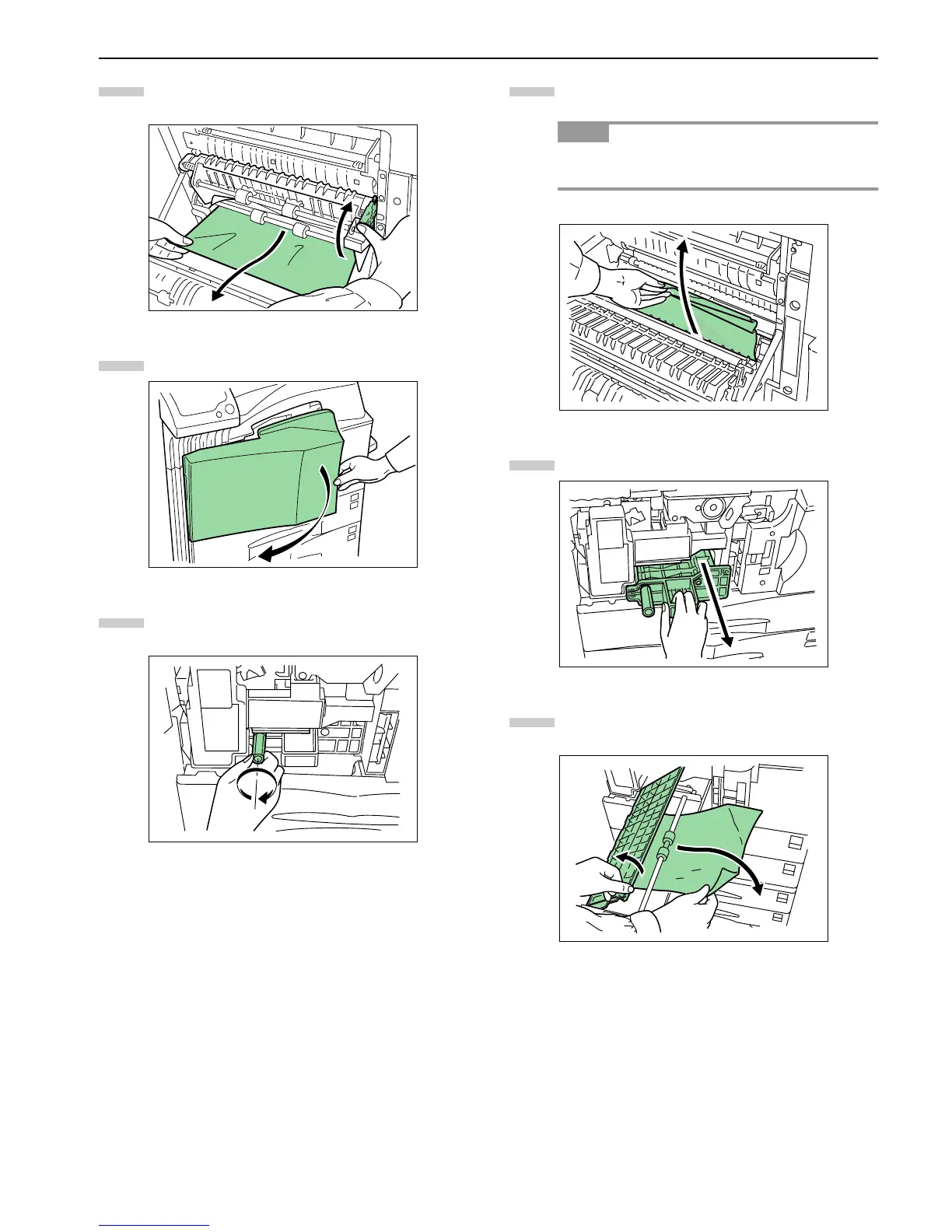

Push the lever (gray colored) to raise the duplex unit
and remove the jammed paper.
Figure 4-7
Open the front cover.
Figure 4-8
Turn the knob clockwise to release the jammed pa-
per from the MP transport tray section.
Figure 4-9
Open left cover 1 to remove paper jammed in the MP
transport tray.
When removing jammed paper, be careful not to touch
the printer drum. This can cause printer malfunction.
Figure 4-10
Pull out the MP transport tray as far as it will go.
Figure 4-11
Open the MP transport tray cover and remove any
jammed paper.
Figure 4-12
3
4
5
NOTE
6
7
8
To Next Page
