(2) Detaching and refitting the main PWB (16/18 ppm printers)
<Procedure>
1. Remove the right cover. See page 1-6-2.
2. Remove the one screw and then remove the
CF guide.
3. Remove the two connectors from main
PWB.
4. Remove three screws from the USB inter-
face connector and parallel interface con-
nector.
5. Remove the four screws and then remove
the main PWB (with controller box).

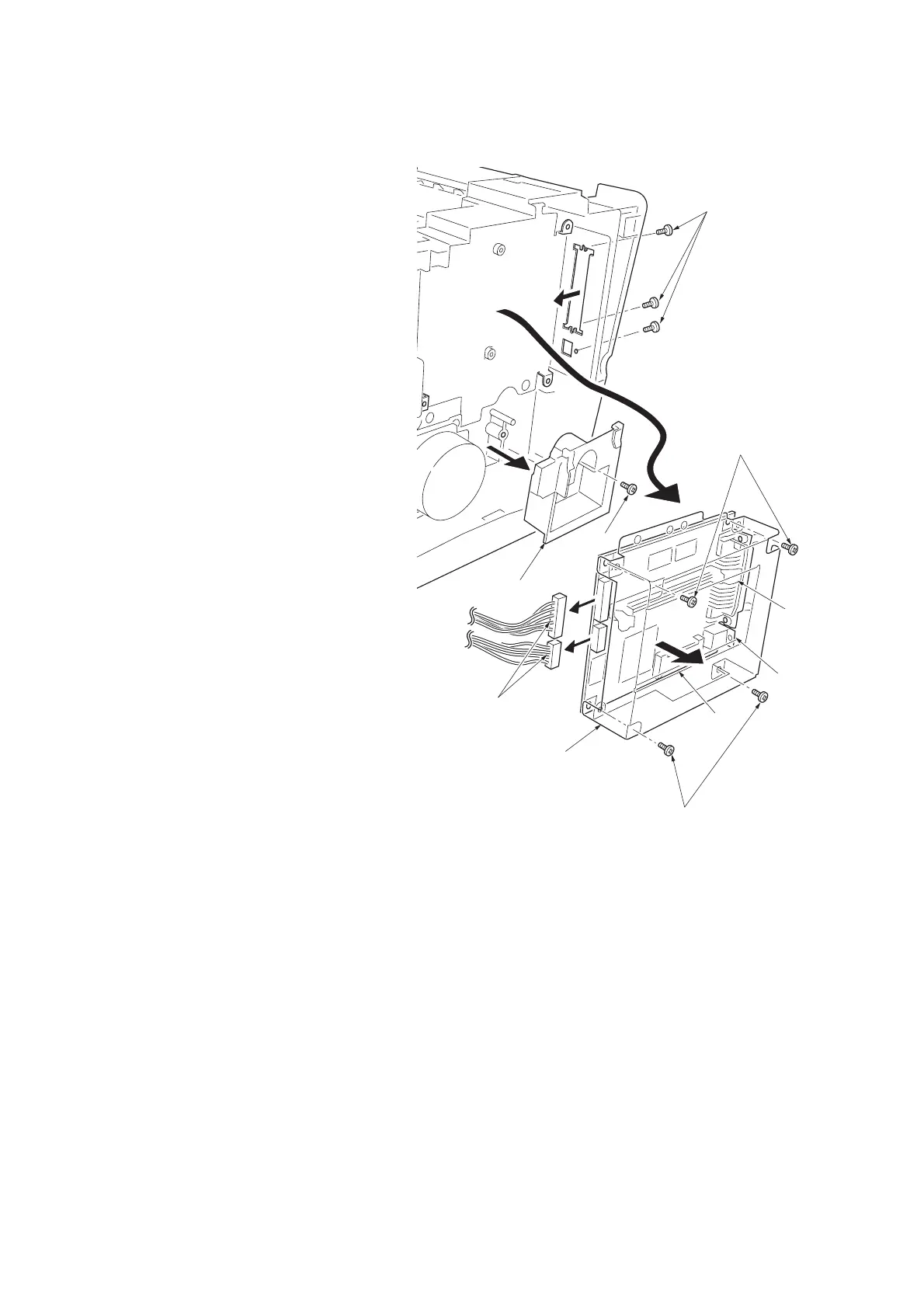

Figure 1-6-22
Screws
Screws
Screws
Connectors
Controller box
Main PWB
Parallel
interface
connecto
r
USB
interface
connector
Screw
CF guide
