Kyocera FS-9530DN Advanced Operation Guide

Using the Operation Panel
ADVANCED OPERATION GUIDE 2-11
Using the Operation Panel
This section explains how to use the menu selection system. [MENU] on
the operation panel allows you to use the menu to set or change the printer
environment such as the number of copies to print, emulation, etc., to your
specific needs. Settings can be made when Ready is indicated on the
printer message display.
The printer obeys the most recently received printer settings sent from the
application software, or from the printer driver, which take priority over
operation panel settings.
Menu Selection System

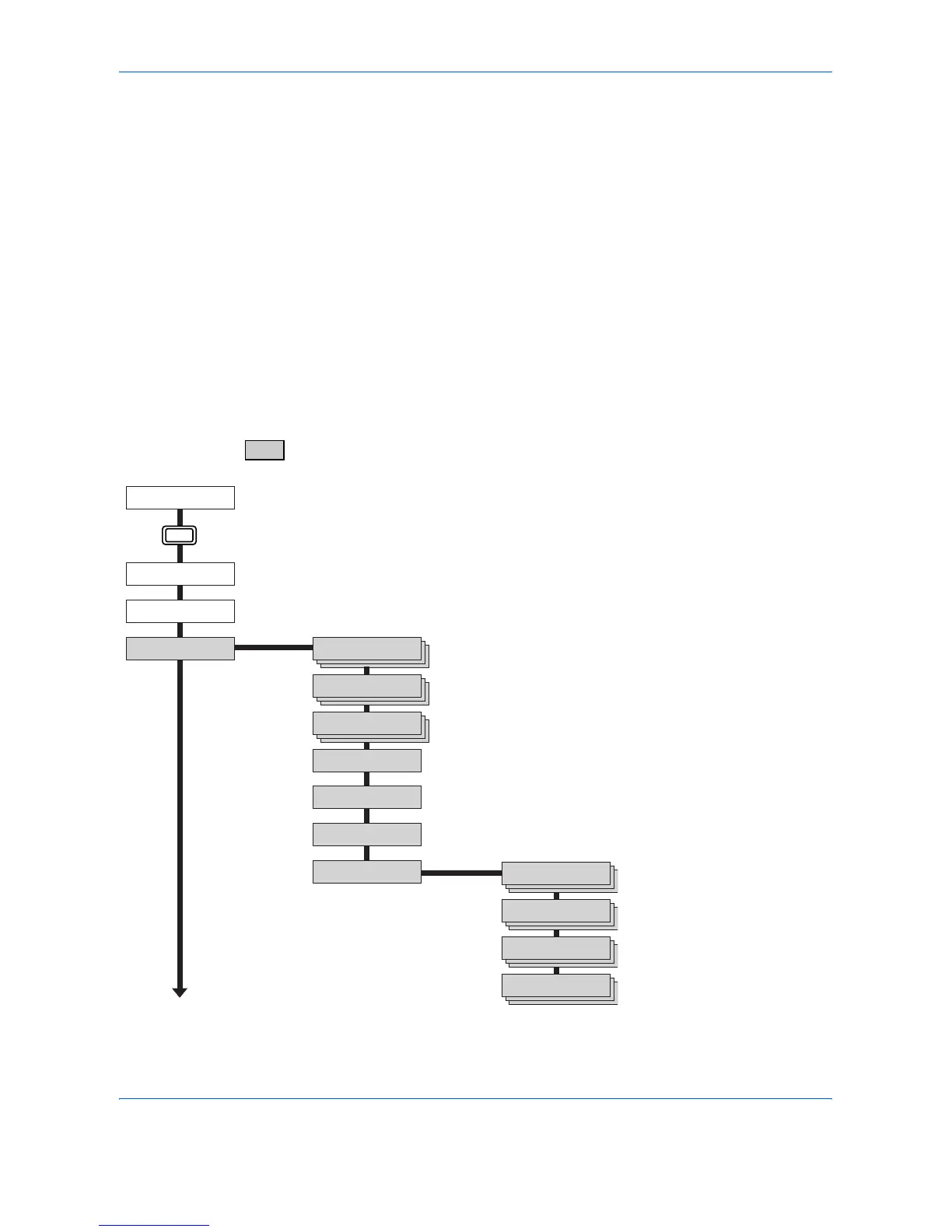

The following is the hierarchy diagram of the menu selection system of the
printer. The vertical transition is made with U and V and horizontal
transition is made with Z and Y. To change or finalize configuration on an
item, use [OK].
These items will not appear unless the printer is installed with the applicable option.
Ready
--- A4 PLAIN
Ready
PAR A4 PLAIN
Print
Menu Map
Print
Status Page
e-MPS >
MENU Key
Continued on the next page
>Quick Copy
>Private/Stored
>Print VMB Data
>Print
VMB List
>User ID
>Print
Code Job List
>e-MPS >
Configuration
>>Quick Copy
>>Temp. Code JOB
Size
>>Perm. Code JOB
Size
>>VMB Size
0500MB
0500MB
0500MB
32

Kyocera FS-9530DN Specifications

General

Maximum print size	297 x 420 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	3.5 s
Print speed (black, normal quality, A3)	26 ppm
Print speed (black, normal quality, A4/US Letter)	51 ppm
Memory type	DDR
Memory slots	1
Processor model	750FL
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	640 MB
Sound power level (standby)	51 dB
Sound pressure level (printing)	70 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	200 sheets
Wi-Fi	-
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP, IPX/SPX, AppleTalk, NetBEUI
Printing colors	Black
Maximum duty cycle	300000 pages per month
Page description languages	PCL 5e, PCL 6, PCL XL
Current rating	11.4 A
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	180 W
Power consumption (printing)	900 W
Power consumption (PowerSave)	4.5 W
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Other operating systems supported	Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x
Server operating systems supported	Windows Server 2003
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR
Product color	White
Networking features	Fast Ethernet

Weight and Dimensions

Dimensions (WxDxH)	599 x 646 x 615 mm
