Replacement and Adjustment
48

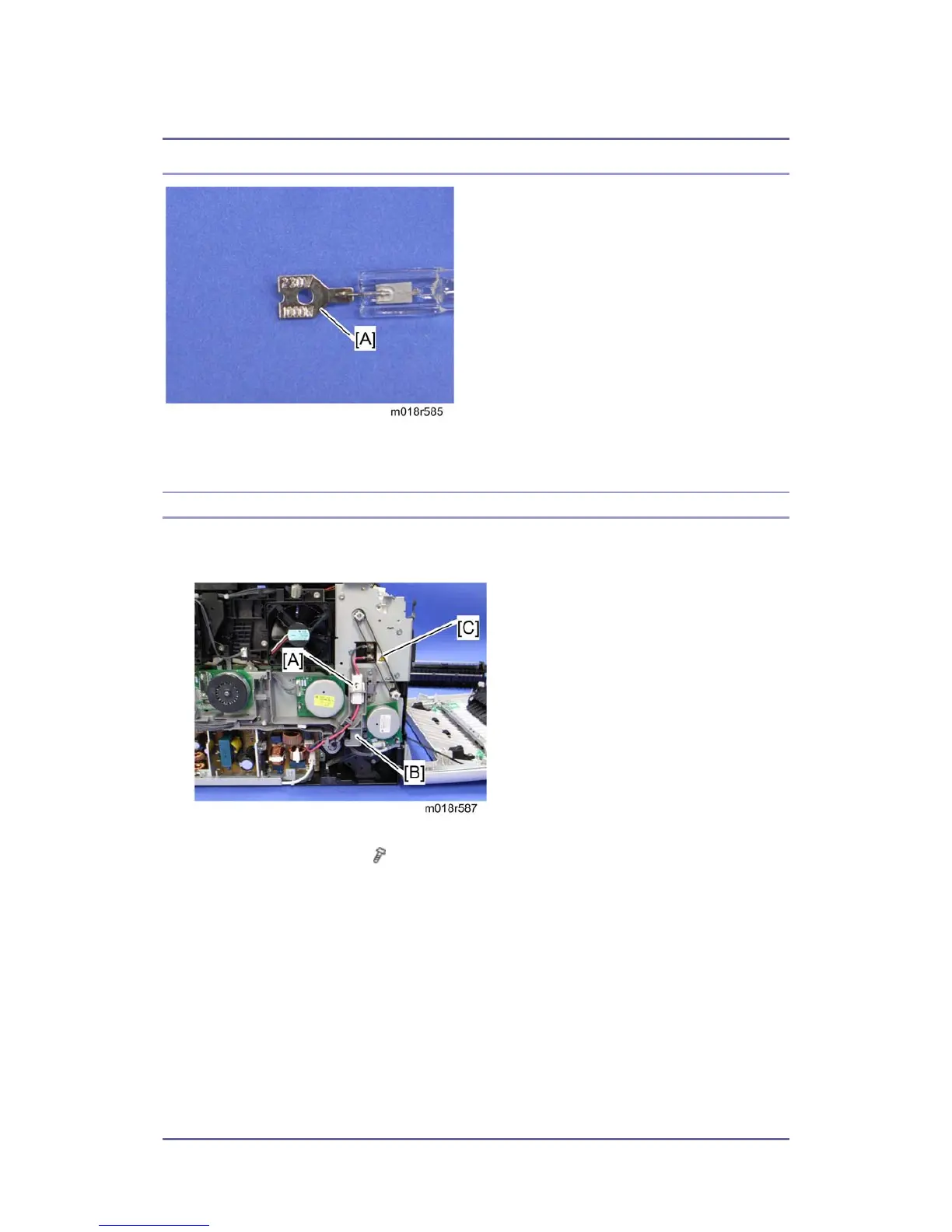

When Reinstalling the Fusing Lamp
The terminal [A], which shows the voltage and power ratings, must be placed at the left side
of the fusing unit (fusing cable side).
Transport/Fusing Motor
1. Rear cover (→ p.16)
2. Left cover (→ p.18)
3. Disconnect the fusing connector [A] (hook).
4. Fusing harness guide [B] (
x 2)
5. Duplex timing belt [C]
To Next Page
