Kyocera FS-C1020MFP

Replacement and Adjustment
81
Scanner
Scanner Unit

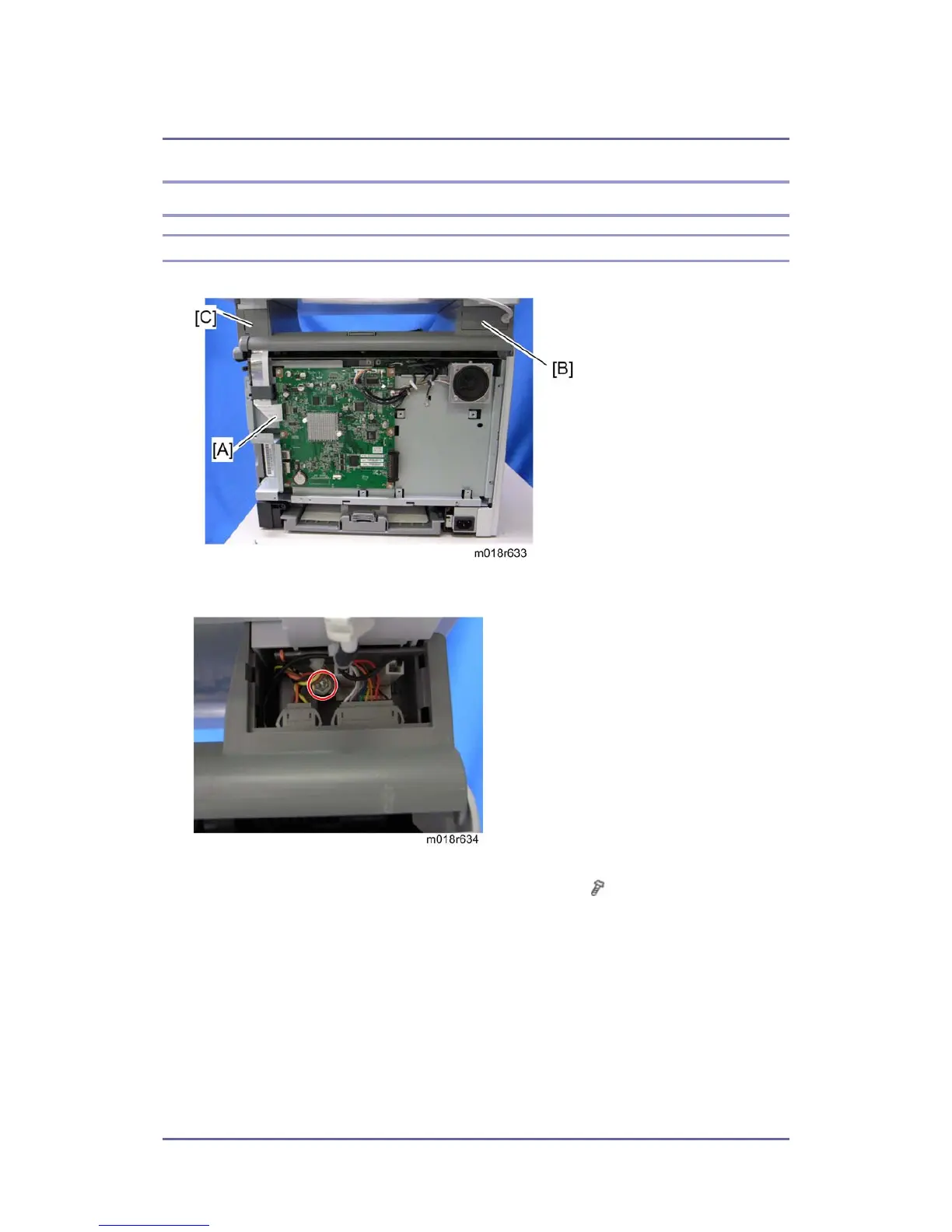

1. Controller box cover (→ p.57 "Controller Board")
2. Disconnect the flat cable [A].
3. Stand left cover [B] and right cover [C] (1 hook each)
4. Disconnect the scanner harness, power cord and ground cable (and the ADF harness
and power cord if the ADF is installed in the scanner unit) (
x 1).
5. Open the top cover of the machine.
