Kyocera FS-C8500DN User Manual

4-108 Using the Operation Panel
2 Press [OK]. The Color Regist. menu screen appears.
Press [Exit] ([Right Select]) to return to the standby screen.
3 Press U or V to select Normal.
4 Press [OK]. The Color Regist. Normal menu screen appears.
Press [Exit] ([Right Select]) to return to the standby screen.
5 Press U or V to select Adjust Magenta.
6 Press [OK]. The Adjust Magenta screen appears.
0 is displayed for the H-F, V and H-R values and the cursor (_)
flashes under the F value.

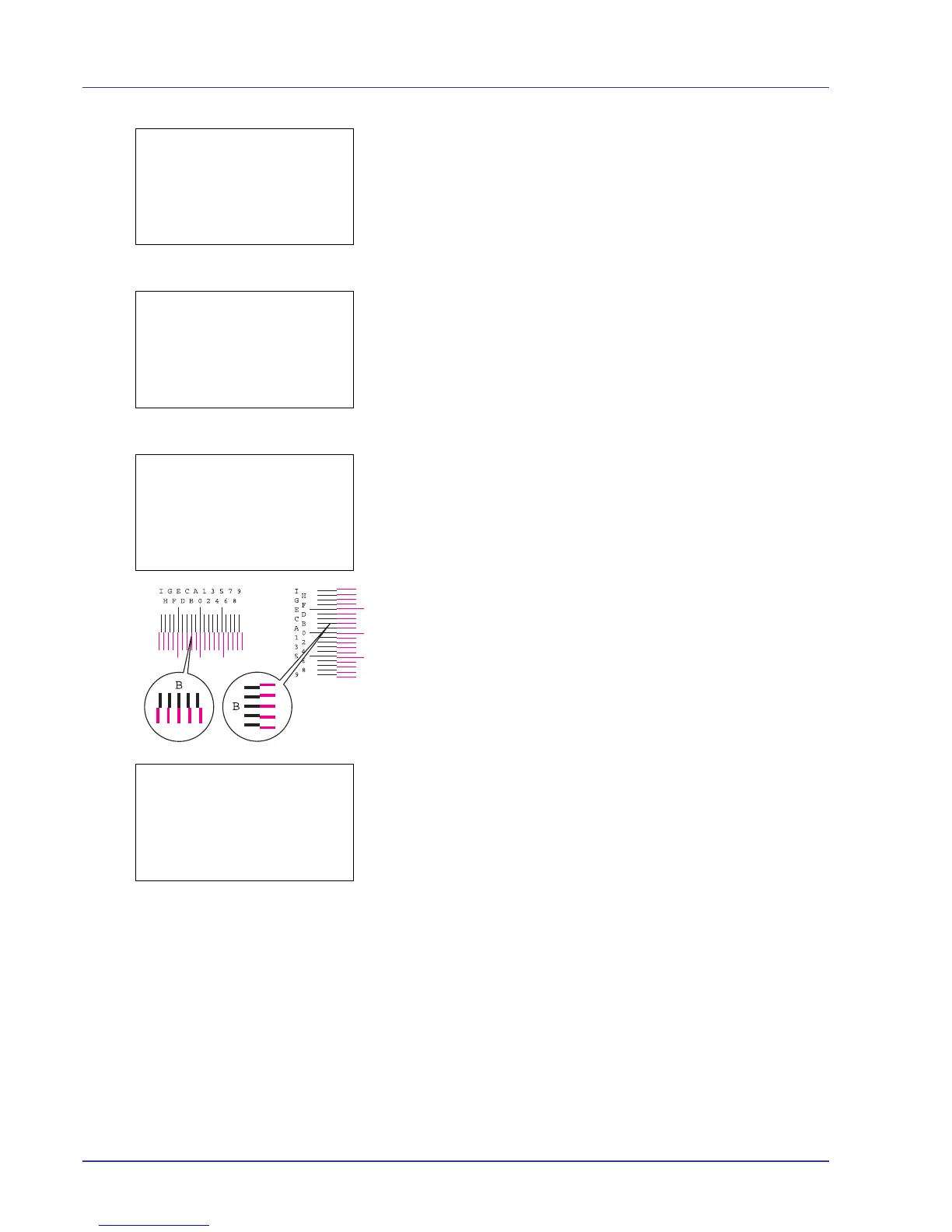

7 In the F chart for magenta printed in Print Chart above, note the
values where the lines are closest to forming a single straight line.
This would be B in this figure.
8 Press U or V until that value is displayed.
9 Press Y or Z to move the cursor right or left.
Using the same procedure as for the H-F value, display the V and H-
R values identified in the color registration correction chart.
When you have completed all the values, press [OK].
The setting is saved and you are returned to the Color Regist.
Normal menu screen.
Color Regist.: a b
1 Normal
2 Detail
[ Exit ]
Normal: a b
1 Print Chart
2 Adjust Magenta
3 Adjust Cyan
[ Exit ]
Adjust Magenta: a b
(I - A, 0 - 9)
H-F:
/0- V: 0 H-R: 0
Adjust Magenta: a b
(I - A, 0 - 9)
H-F:
/*- V: 0 H-R: 0
B
