Kyocera FS-C8500DN User Manual

4-112 Using the Operation Panel
6 Press [OK]. The Adjust Magenta screen appears.
Values are displayed for H-1, H-2, H-3, H-4, H-5 and V-3.

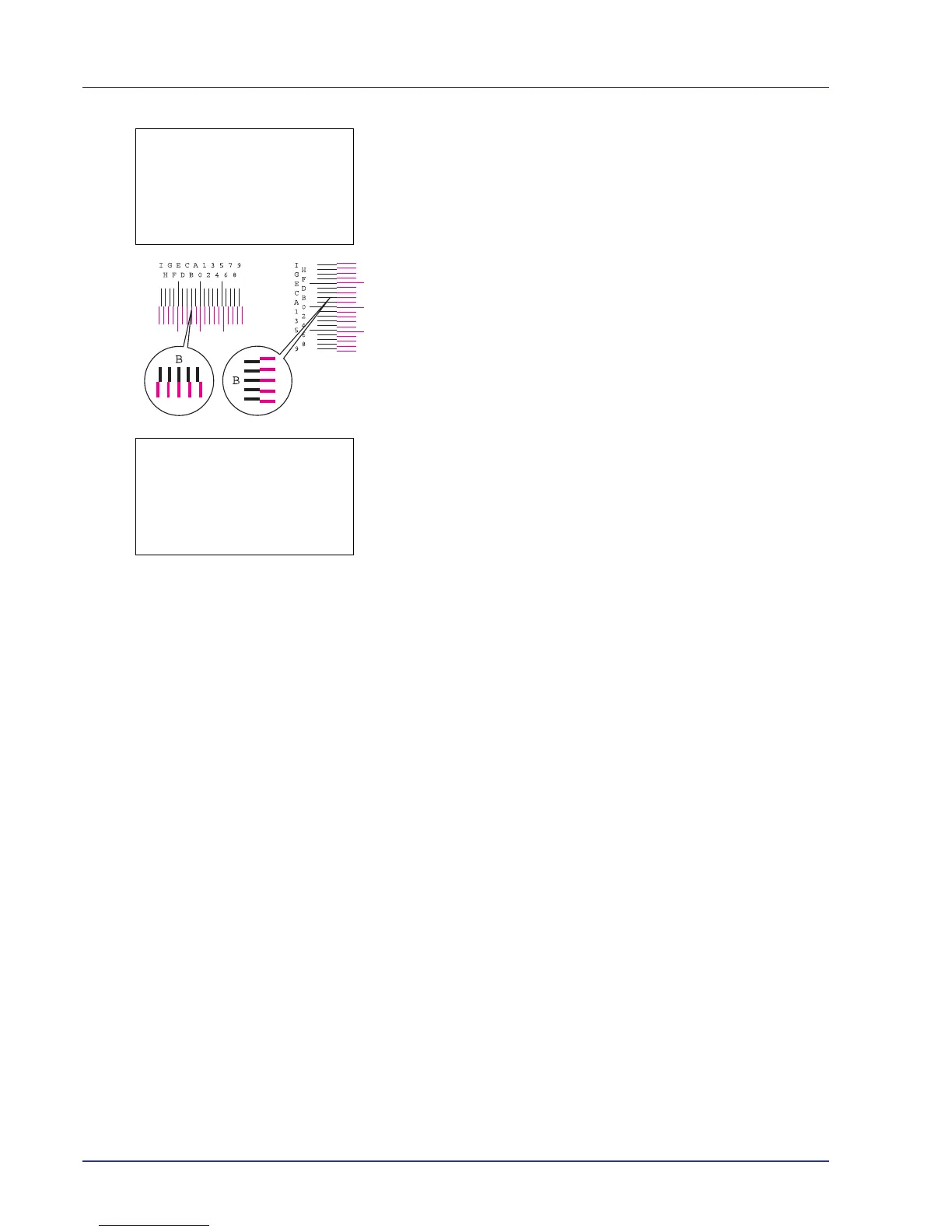

7 In the H and V charts for magenta printed in Print Chart above, note
the values where the lines are closest to forming a single straight line.
This would be B in this figure.
8 Press U or V until that value is displayed.
9 Press Y or Z to move the cursor right or left.
Using the same procedure as for the H-1 value, display the other
values identified in the color registration correction chart. When you
have completed all the values, press [OK]. The setting is saved and
you are returned to the Color Regist. Detail menu screen.
Adjust Magenta: a b
(I - A, 0 - 9)
H-1:
/0- H-2: 0 H-3: 0
H-4: 0 H-5: 0 H-6: 0
H-7: 0 V-3: 0
Adjust Magenta: a b
(I - A, 0 - 9)
H-1:
/*- H-2: 0 H-3: 0
H-4: 0 H-5: 0 H-6: 0
H-7: 0 V-3: 0
B

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
