KYORITSU 6050 - Test Lead; Optical Adapter Model 8212

― 6 ―

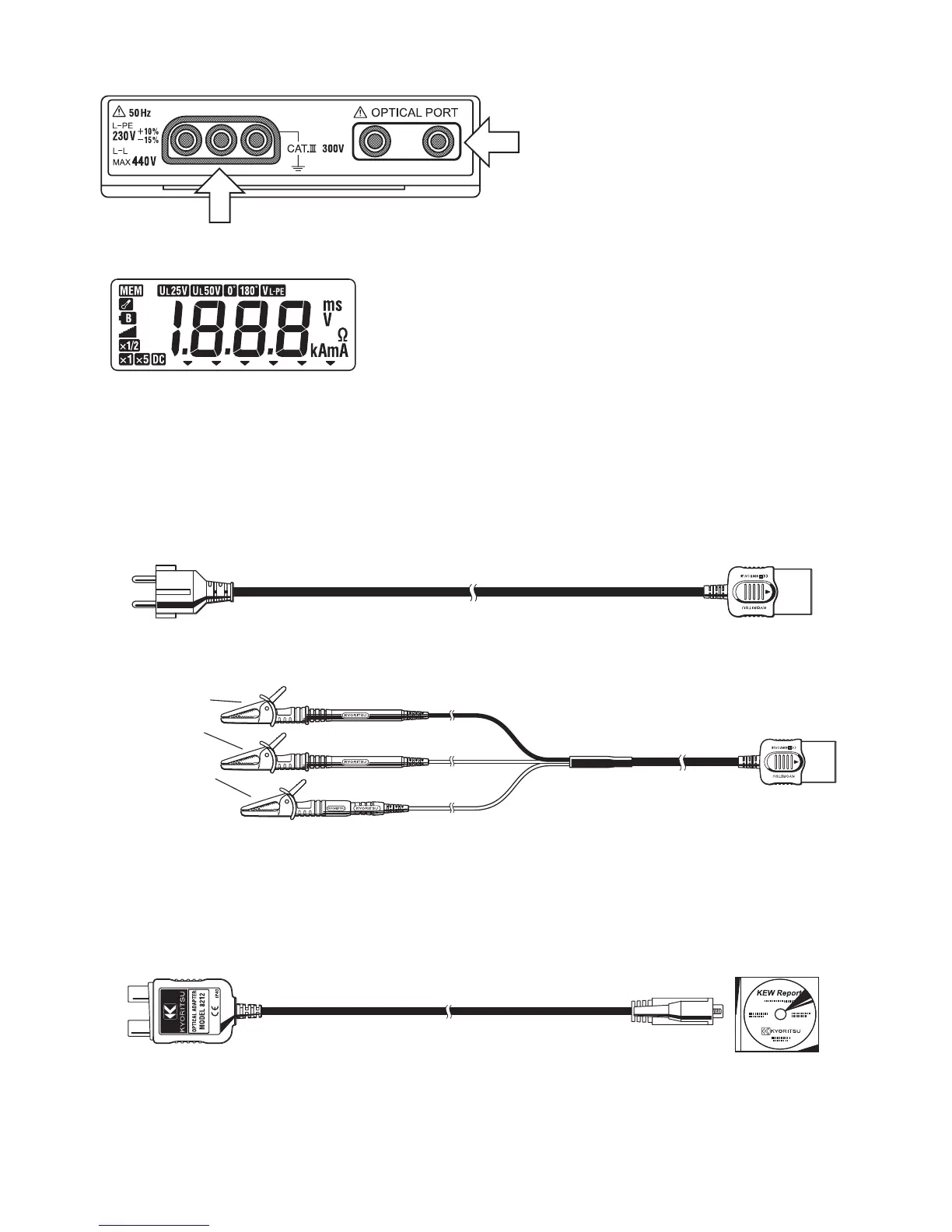

Black-Neutral
Red-Phase
Green-Earth
Fig.7
Fig.4
OpticalAdasperModel8212
(OptionalAccessory)
TestLeadModel7125orModel7121(OptionalAccessory)
LCDDISPLAY
Fig.5
Fig.6
3.2TestLead
TheinstrumentissuppliedwithModel7125Leadatsocketoutletsand
Model7121,whichisanoption,formeasuringdistributionboard.
1.Model7125
2.Model7121(OptionalAccessory)
3.3OpticalAdapterModel8212(OptionalAccessory)
ForModel6050,datacanbetransferredtoPCviaOpticalAdapter
Model8212.Model8212issuppliedwithPCsoftware"KEWREPORT".
Model8212operatesPC/ATcompatiblemachineon
Windows
○
R
98/ME/2000/XP.Pleasereferto
"9.4Transferthestored
Fig.8
