KYORITSU 6050 - LOOP Impedance and PSC Testing

― 18 ―

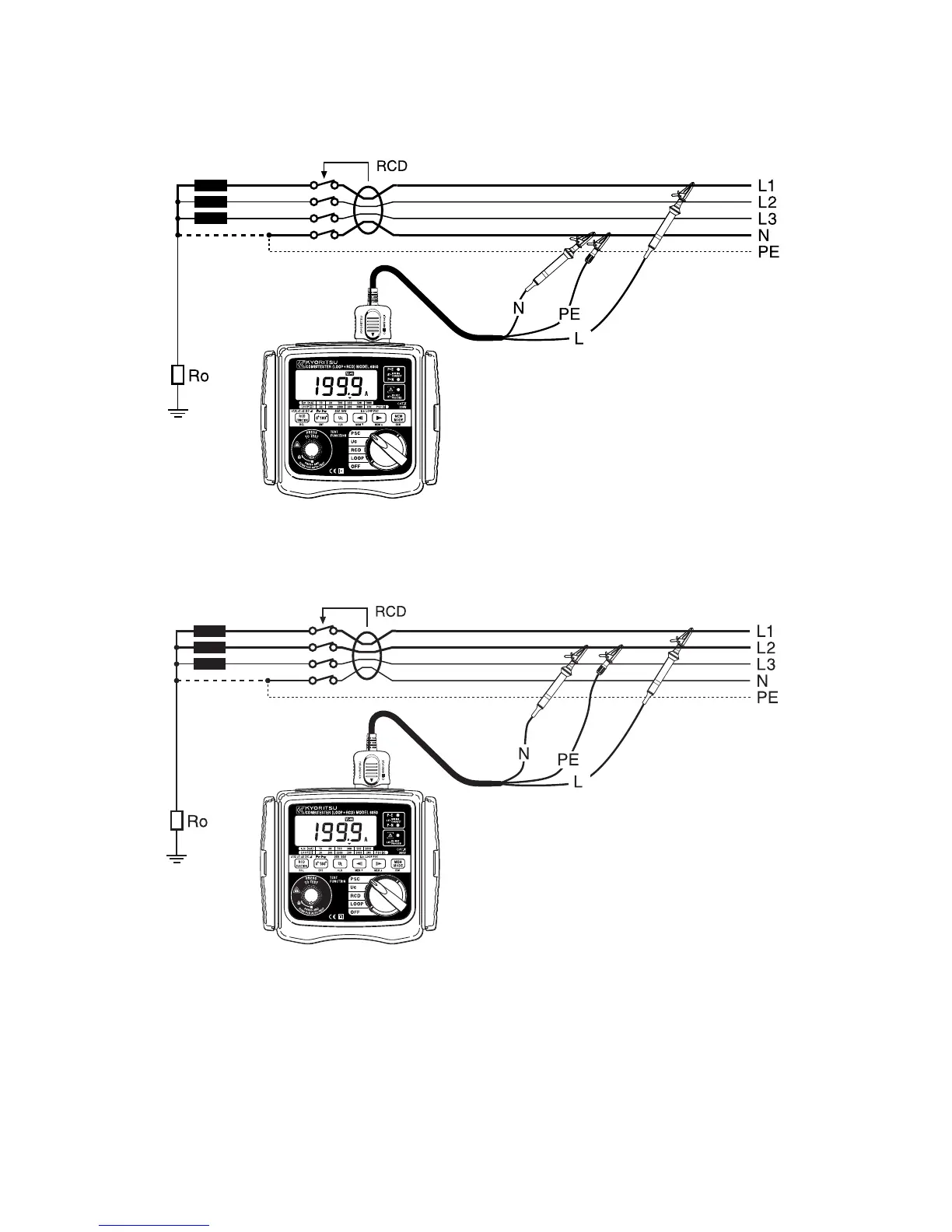

Methodof Impedancetest betweenLine andNeutral andProspective
ShortCircuitedCurrenttest
MethodofImpedancetestbetweenLineandLineandProspective
ShortCircuitedCurrenttest
5.2LOOPImpedanceandPSCTesting
5.2.1Preparation
(1)TurnFunctionswitchandpowerontheinstrument.SelectLOOPor
PSC.
(2)Select the range foratestwith"I⊿n/LOOP/PSC"SELECT
SWITCH. By pressing "I⊿n / LOOP / PSC" SELECT SWITCH, ▼
markonLCDshiftsandcanselecteachrange.

Fig.13

Fig.14
