6-5 ResistanceMeasurement
# DANGER
󱾀 Never try to make measurement on a circuit that is not
deenergized.
󱾀 Do not make measurement with the battery compartment cover
removed.
󱾀 Keep your fingers and hands behind the barrier during
measurement.

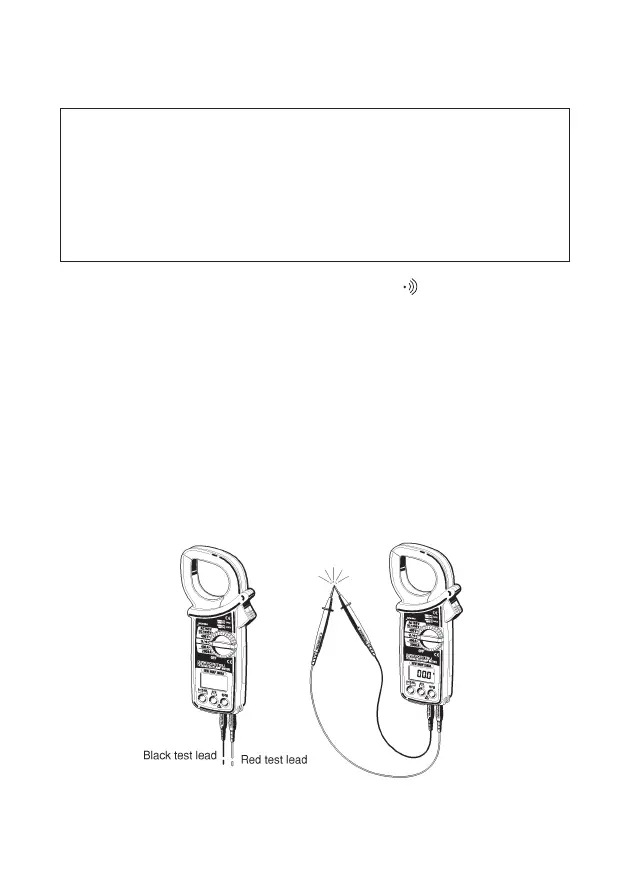

a.SettheFunctionSelectorswitchtothe(
Ω /   )position.
b.Slidetheterminalcovertotheleft.Plugtheredtestleadintothe
V/
Ω terminalandtheblacktestleadintotheCOMterminal.
c.Check that the display reads "OL". Then, short the tip of the test
leadstogetherandcheckthatthedisplayreads"0".
d.Connectthetipofthetestleadstothecircuitundertestandtake
thereadingonthedisplay.
NOTE
◇ When the tip of the test leads is shorted together, the display
may reada verysmall resistance insteadof"0". Thisis the
resistanceofthetestleads,notafault.
◇ Ifoneofthetestleadshasabreak,thedisplayreads"OL".
