KYORITSU KEW 2003A - Optional Accessories

 26 
9. Optional Accessories
󱾀 MODEL8008(ForACcurrentmeasurementonly)
Multi-Tran MODEL 8008 isdesigned to measure ACcurrent up
to3000Aoralargebus-barorconductorwithaclampmeter.
a.SettheFunctionSelectorswitchto"400A".
b.SelecttheACmodewiththeAC/DCbutton.

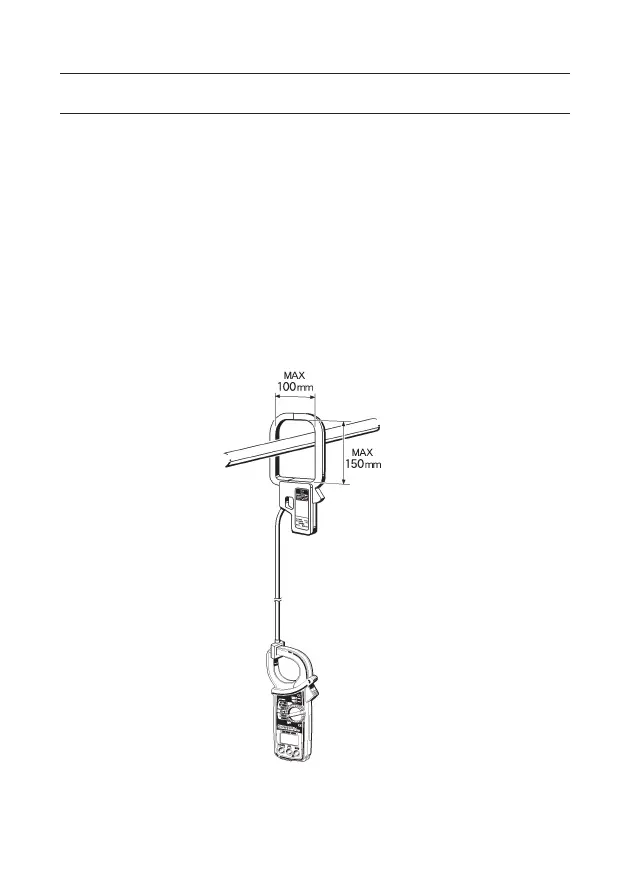

c.Asshowninthefigurebelow,clampKEW2003Aontothepickup
coilofMODEL8008.
d.ClampMODEL8008ontothebus-barorconductorundertest.
e.TakethereadingonKEW2003Aandmultiplyitby10.
