a) Fuel Injection Time, displayed in the main area;
b) Fuel Injector Power Supply Voltage (INJ Voltage), displayed at the top;
c) Maximum Reverse Induced Voltage Value of Fuel Injector Control Coil,
shown as Max (If it exceeds 35V, the red LED light will flash); and
d) Minimum Ground Voltage Value When Fuel Injection Is ON, shown as Min.
To reset the maximum and minimum values, press the mode button twice.
In this mode, if it fails to detect a valid injection pulse, a bar symbol will display
instead, as shown in (Figure 7).
5.6 Resistance

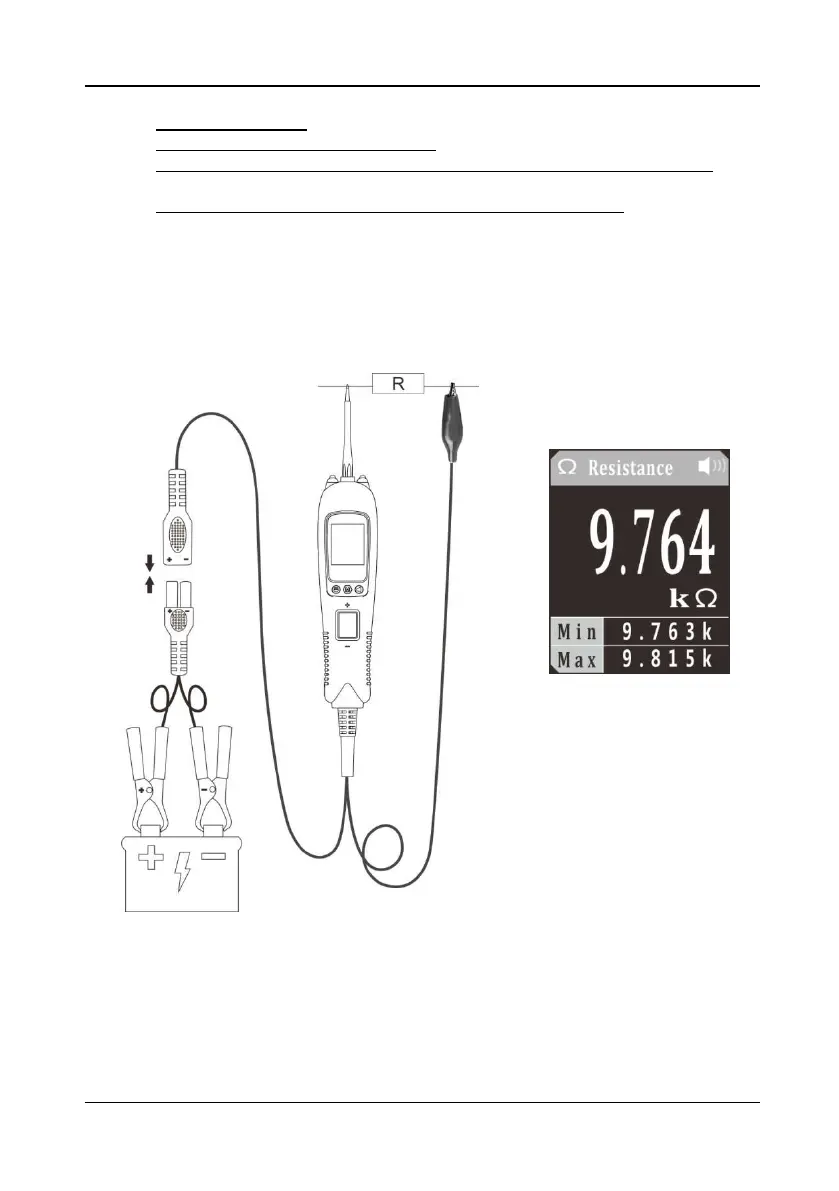

Figure 8
1)
Clip the red alligator clip to the battery positive pole; Clip the black alligator clip to
the battery negative pole.
2) Once the device is powered on, it will enter DC voltage test mode as default.
Short press the mode button to enter the menu, short press the down button to
