L-Acoustics K3 - Directivity

Electro-acoustical description
Directivity
Horizontal
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)

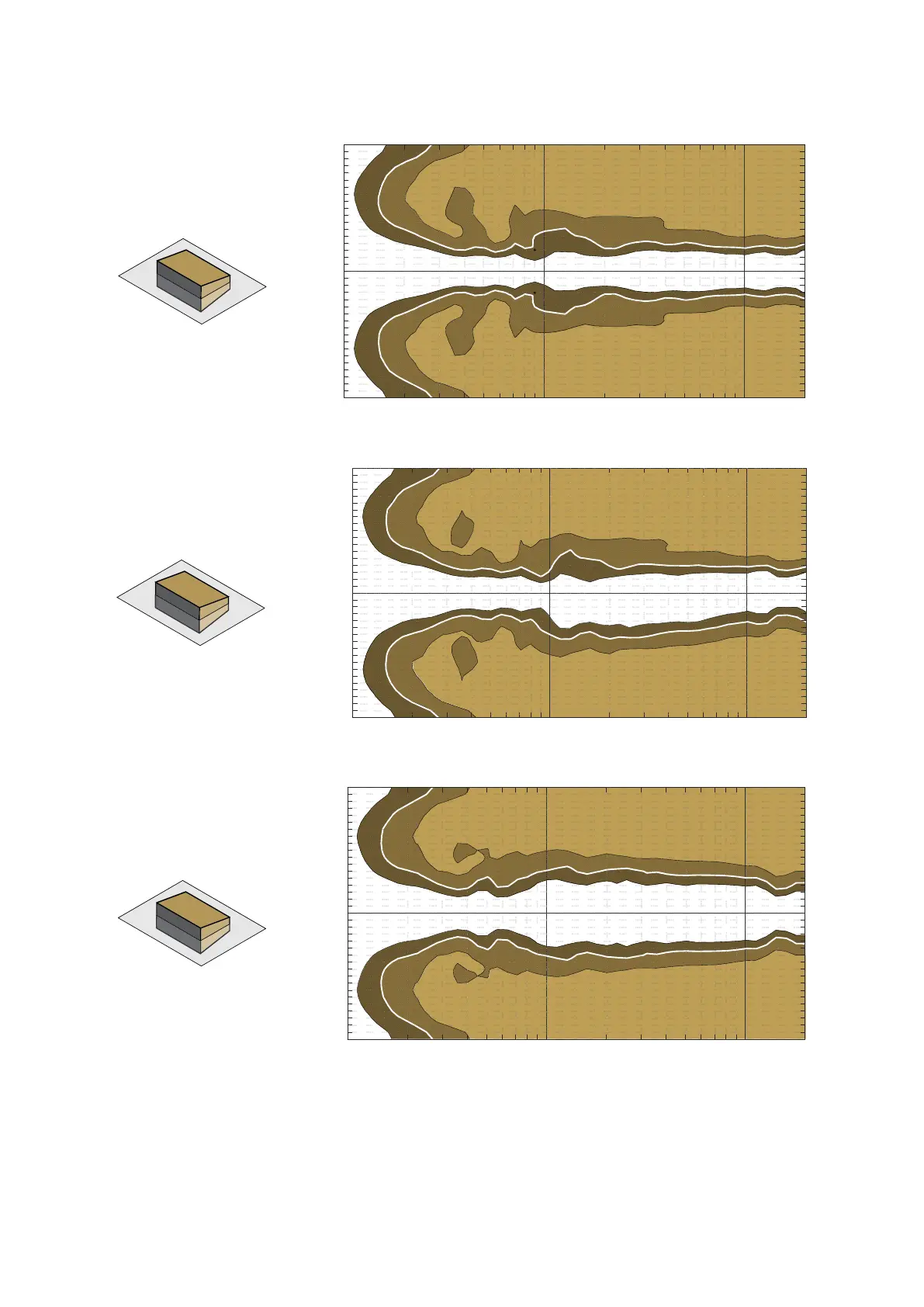

Dispersion angle diagram of a K3 array with 70° ns setting, using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)
Dispersion angle diagram of a K3 array with 90° ns setting, using lines of equal sound pressure at -3 dB, -6 dB, -12 dB.
100 1 000 10 000
Frequency (Hz)
-180
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Angle (°)
Dispersion angle diagram of a K3 array with 110° ns setting, using lines of equal sound pressure at -3 dB, -6 dB, -12
dB.
