L-Acoustics K3 User Manual

Rigging system description

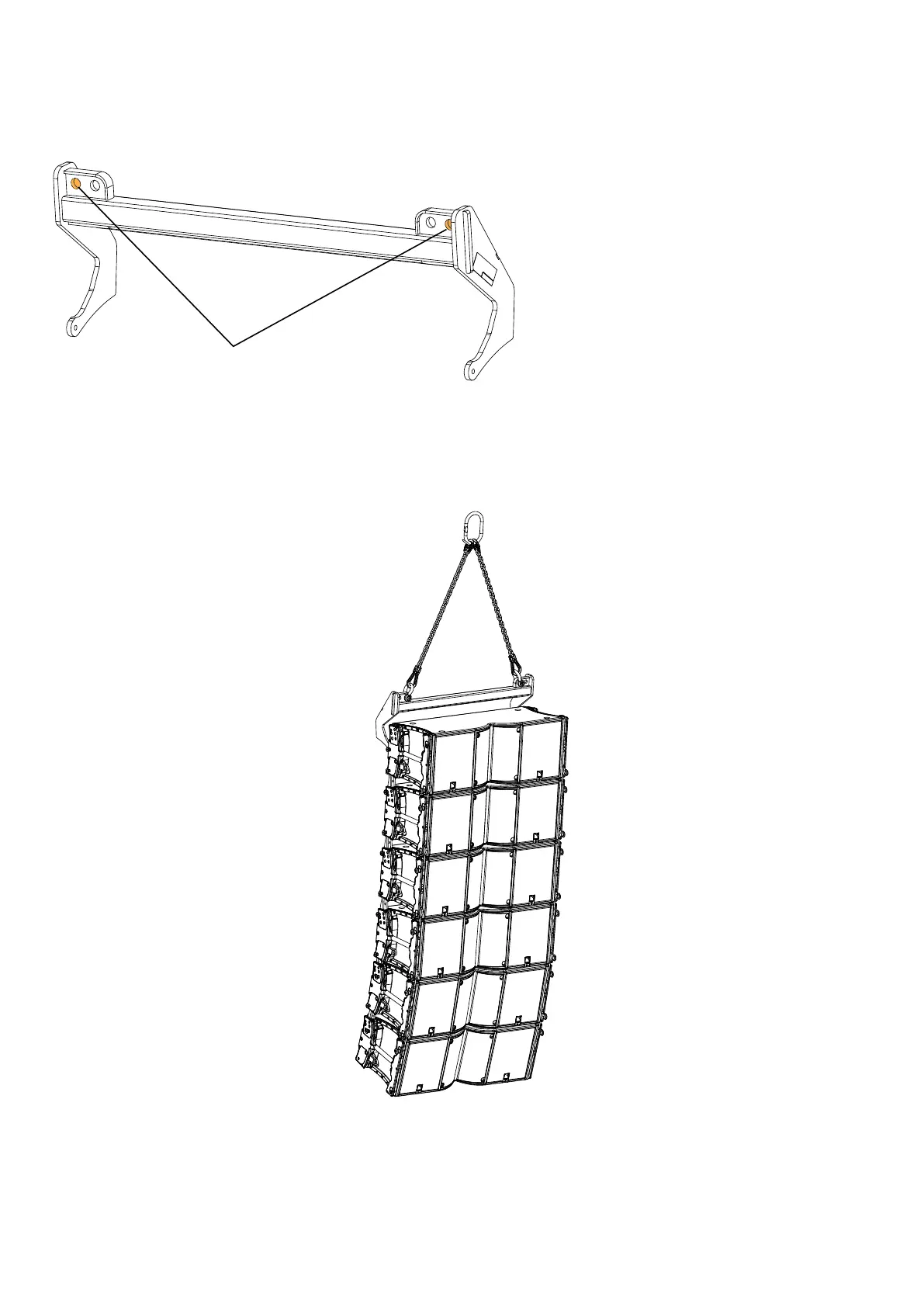

K3-RIGBAR
Secured at the bottom of the array, K3-RIGBAR can be used as a pullback either with K3-BUMP or another K3-RIGBAR as
the main lifting accessory.
additional safety
K3-RIGBAR is equipped with two shackles to secure LA-SLING2T.
The external holes are dedicated to implement an additional safety.
K3-RIGBAR can be used as the main lifting accessory, to provide a lightweight solution for ying up to 16 K3.
K3-RIGBAR must be used with LA-SLING2T.
K3 owner's manual (EN) version 1.0 25

L-Acoustics K3 Specifications

General

Maximum SPL	143 dB
Nominal Impedance	LF: 8 Ω, MF: 8 Ω, HF: 8 Ω
Amplified Controller	LA12X
Weight	43 kg / 95 lb
LF Transducers	2 x 12''
HF Transducers	1 x 3" diaphragm compression driver
Components	2 × 12'' LF
Enclosure Material	Baltic birch plywood
Connectors	2 x NL4
Recommended Amplifier	LA12X
Coverage Angle	70° horizontal
