Rigging system description
Rigging elements for stacked arrays
K2-JACK

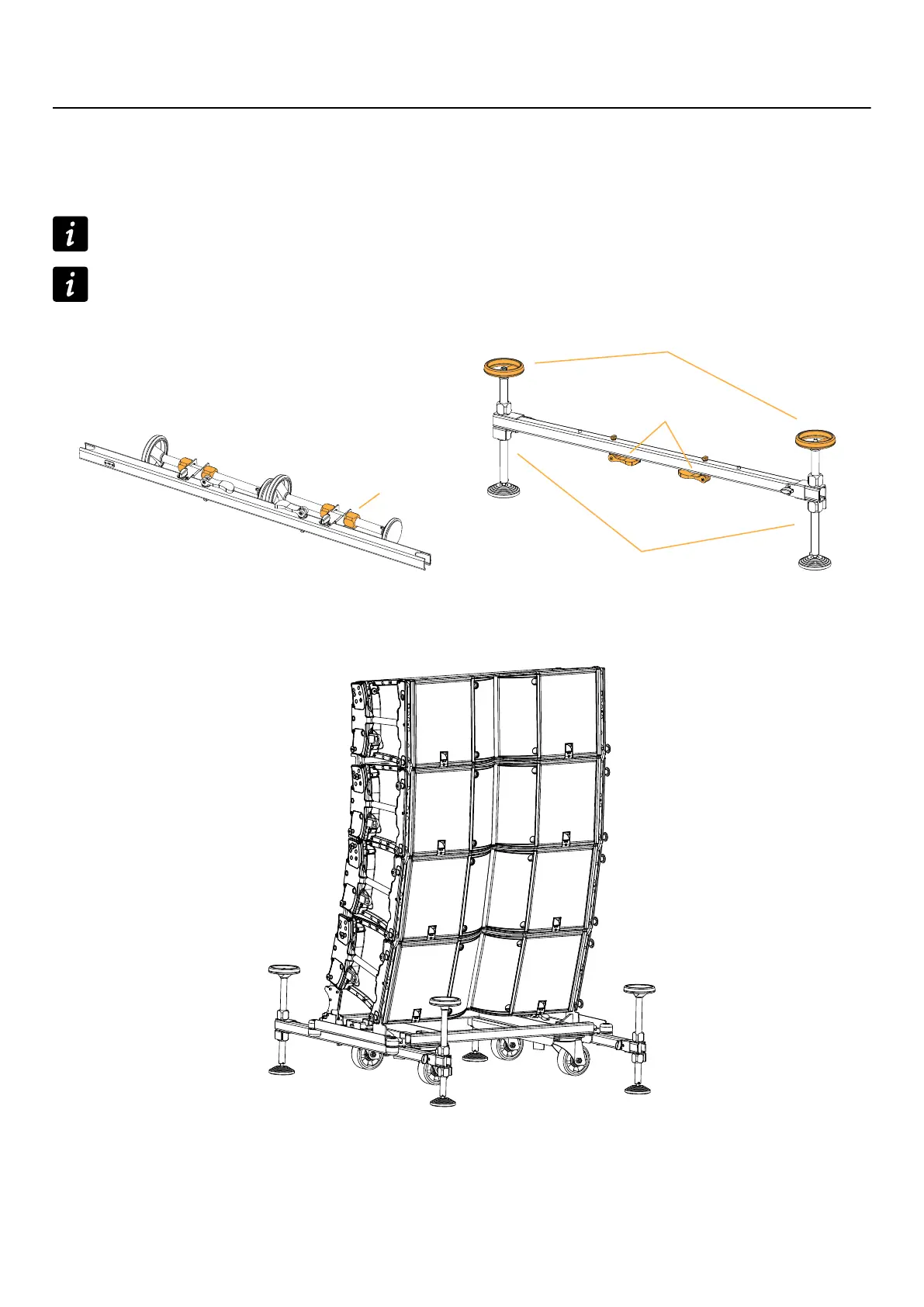

K2-JACK is a set of two bars and four feet with screw jacks and hand wheels. K2-JACK can be tted onto K3-CHARIOT to
improve stability or correct oor discrepancies.
During transportation, make sure the bolts are tightened.
K2-JACK cannot be stored on K3-CHARIOT.
bolts (x4)
feet with screw jacks
locking handles
hand wheels
storage position position in use
With K2-JACK, the site angle of the K3 array can be adjusted between -23° and +13°.
K3 owner's manual (EN) version 1.0 29
