L-Acoustics K3 - Pre-Setting the Inter-Enclosure Angles

Rigging procedures
Pre-setting the inter-enclosure angles
Procedure

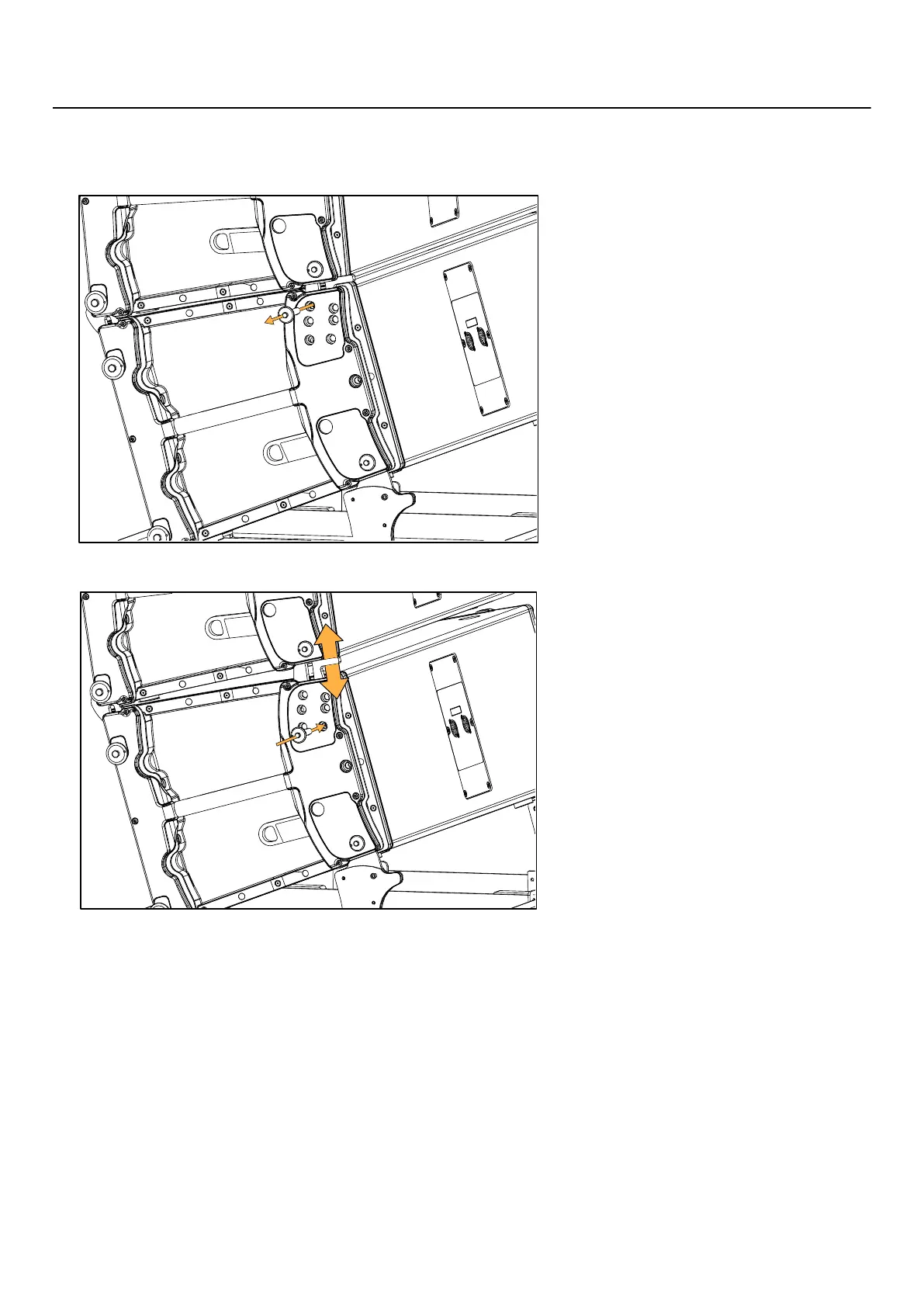

1. On both sides, remove the pin from its current angle hole.
2. Position the pin at the chosen angle hole and slide the rigging arm until the pin goes in.
K3 owner's manual (EN) version 1.0 65
