Rigging procedures

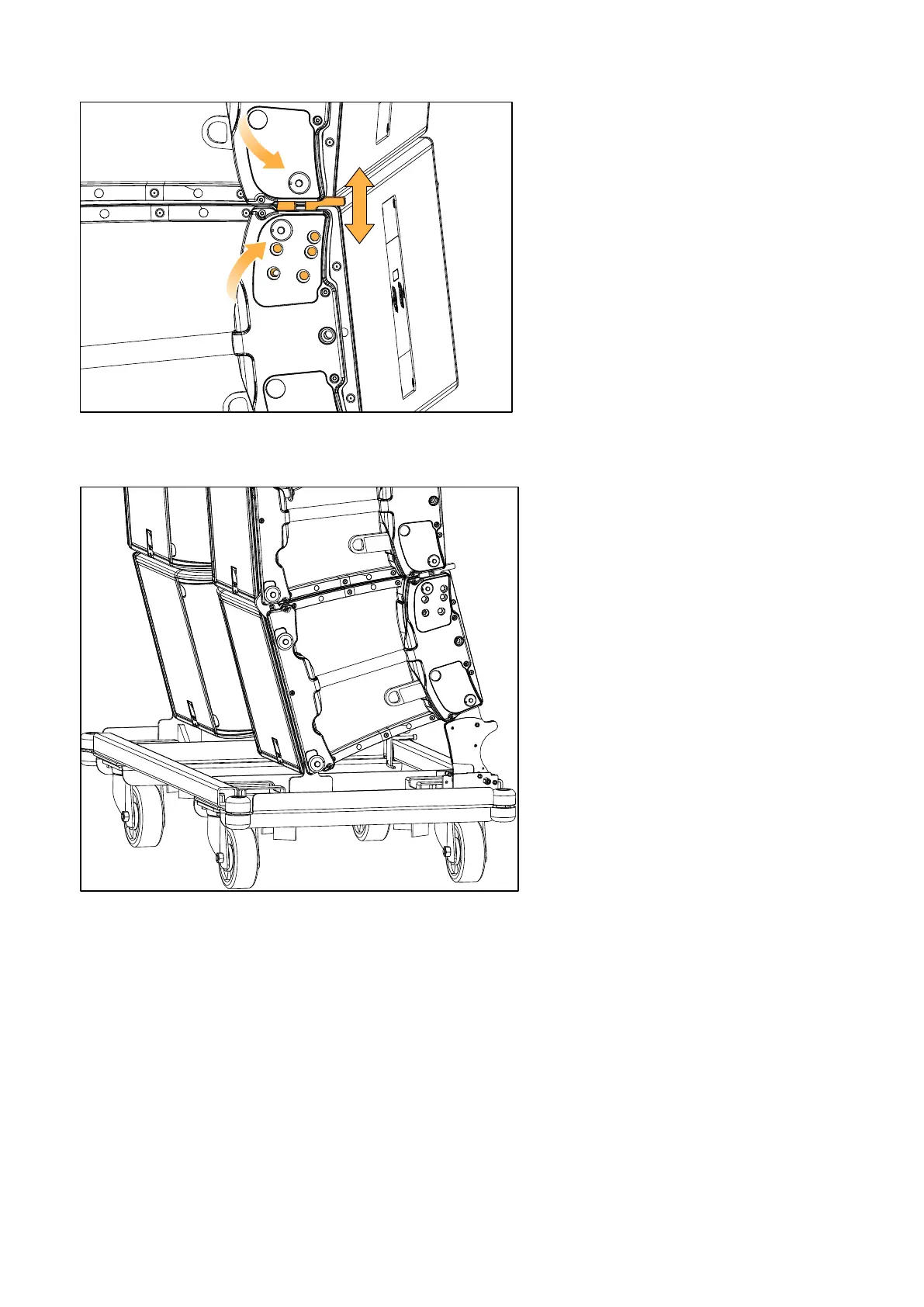

8. Slide the rear rigging arm and secure it with both pins, in the LINK and 10° holes.
9. Make sure the automatic locking system button is unloaded.
If the button has been pressed, pull to disengage the latch.
10. Repeat steps 6 (p.63) to 9 (p.64) until the block of four is complete.
64 K3 owner's manual (EN) version 1.0
