Inspection and preventive maintenance

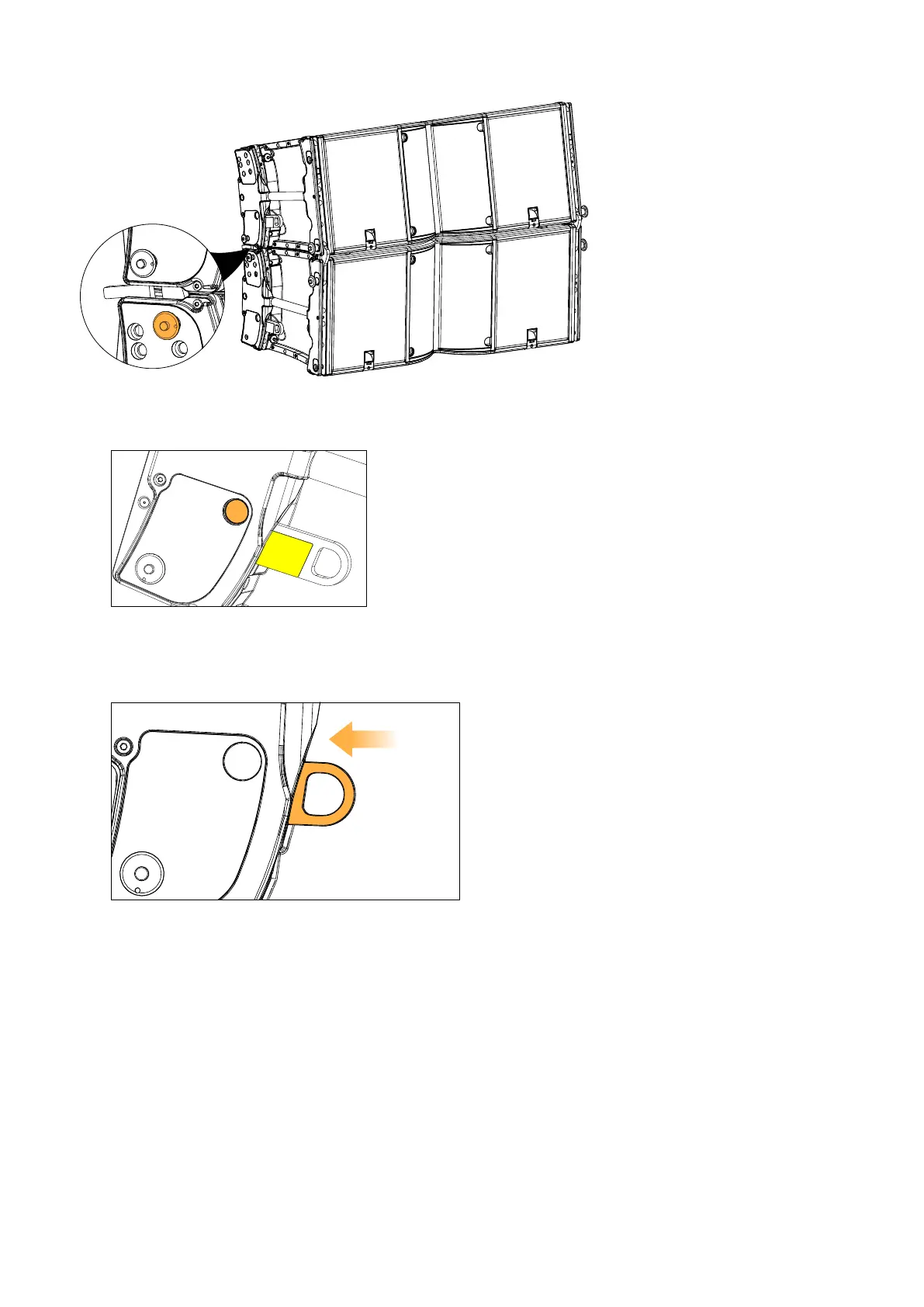

4. Secure the rear rigging arms at one of the inter-enclosure holes.
5. Press the button to activate the automatic locking system.
• The latch slightly retracts when the button is pushed (yellow label visible).
6. Hold and lift the array to lock the inter-enclosure angles.
• The two enclosures remain attached.
• The automatic locking system button locks and the latches engage (no yellow label visible).
SHLAK!
K3 owner's manual (EN) version 1.0 55
