Rigging procedures

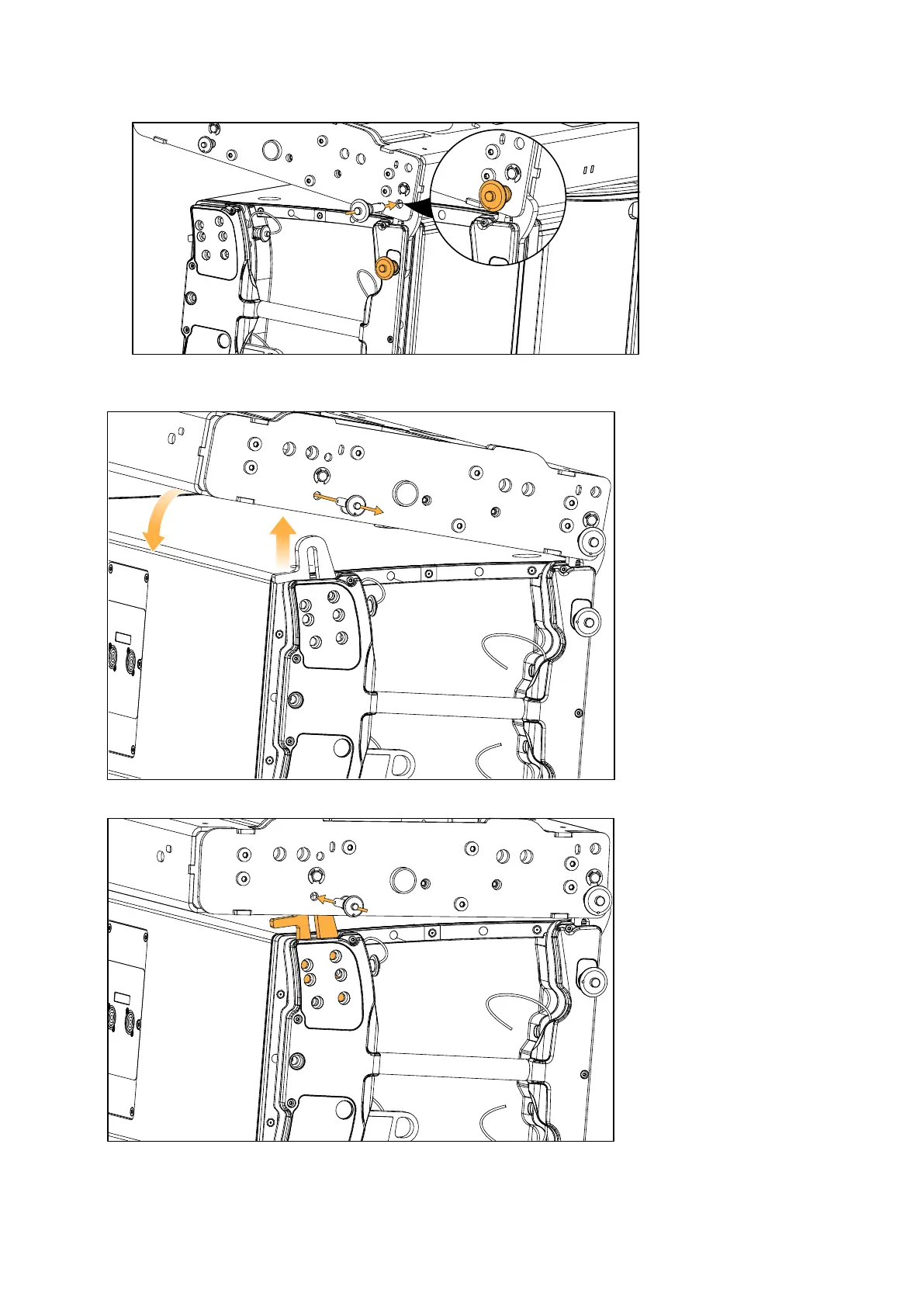

b) Lower the K3-BUMP and secure the connection with the K3 pin.
If the pin resists, move the frame back and forth.
c) Lower the rear of the K3-BUMP.
d) Attach the rear rigging arm to the frame.
e) Slide the arm to its 5° position.
f) Preset the angle at 5° with the enclosure pin.
70 K3 owner's manual (EN) version 1.0
