L-Acoustics K3 User Manual

Rigging procedures
Dust
During the K2-JACK stabilizers rst use dust will come off the threaded rod. It is expected and does not
indicate a malfunction.

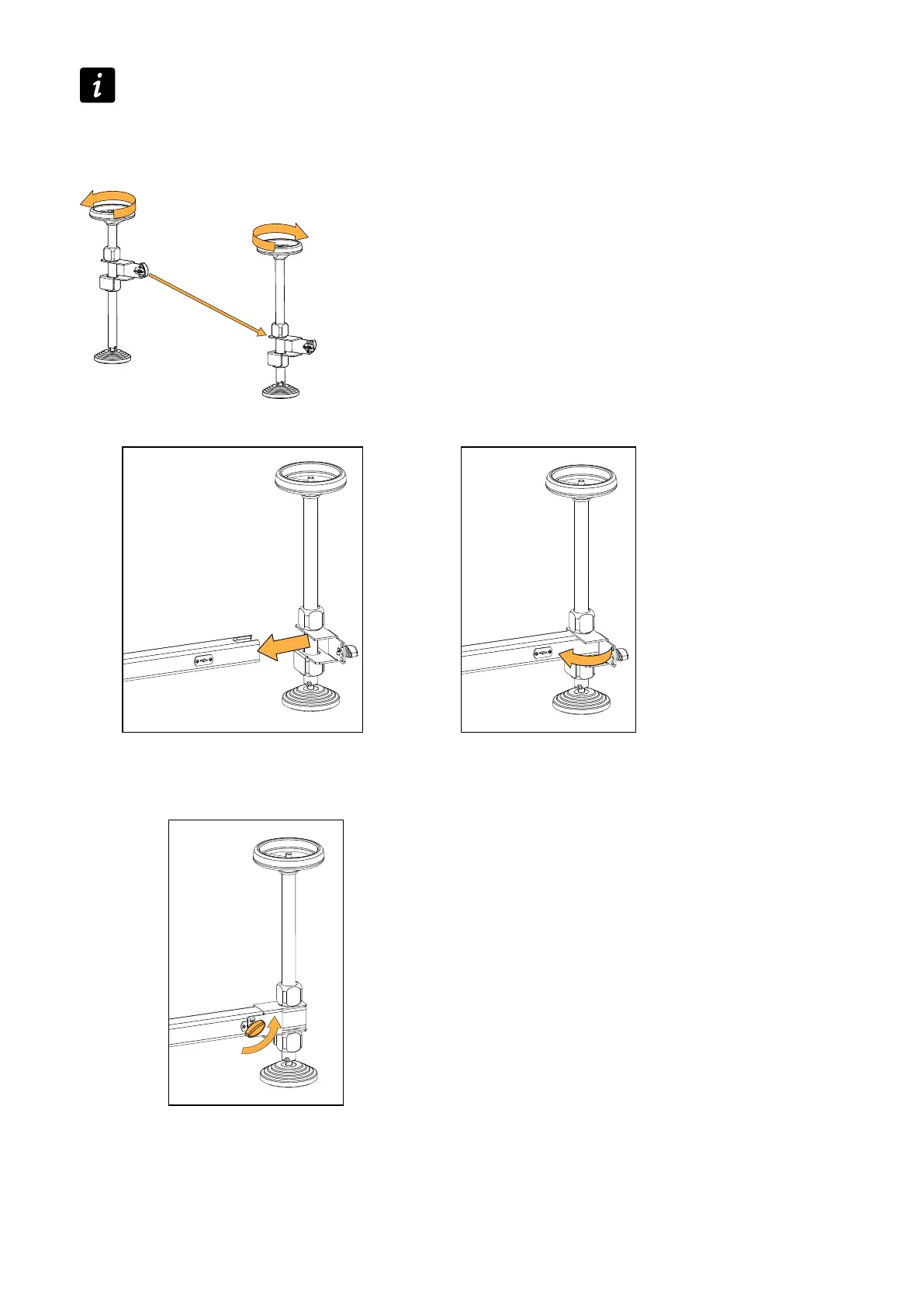

2. Prepare the K2-JACK stabilizers.
Rotate the threaded rod counter-clockwise so the central part of the stabilizer is closest to the base.
3. Attach the stabilizers to the bar.
Insert the feet in the guides
at both ends of the bar.
Pivot the feet so they come
in contact with the bar.
Lock the feet in position by giving
a quarter-turn to the locking system.
90 K3 owner's manual (EN) version 1.0

L-Acoustics K3 Specifications

General

Maximum SPL	143 dB
Nominal Impedance	LF: 8 Ω, MF: 8 Ω, HF: 8 Ω
Amplified Controller	LA12X
Weight	43 kg / 95 lb
LF Transducers	2 x 12''
HF Transducers	1 x 3" diaphragm compression driver
Components	2 × 12'' LF
Enclosure Material	Baltic birch plywood
Connectors	2 x NL4
Recommended Amplifier	LA12X
Coverage Angle	70° horizontal
