Lagoon 39 - Procedure for Adjusting Sliding Bay Windows; Adjusting the Bay Window Height; Dismantling Anti-Unhinging Systems

26
HULL / DECK
LAGOON 39
APPENDIX: PROCEDURE FOR ADJUSTING SLIDING BAY WINDOWS

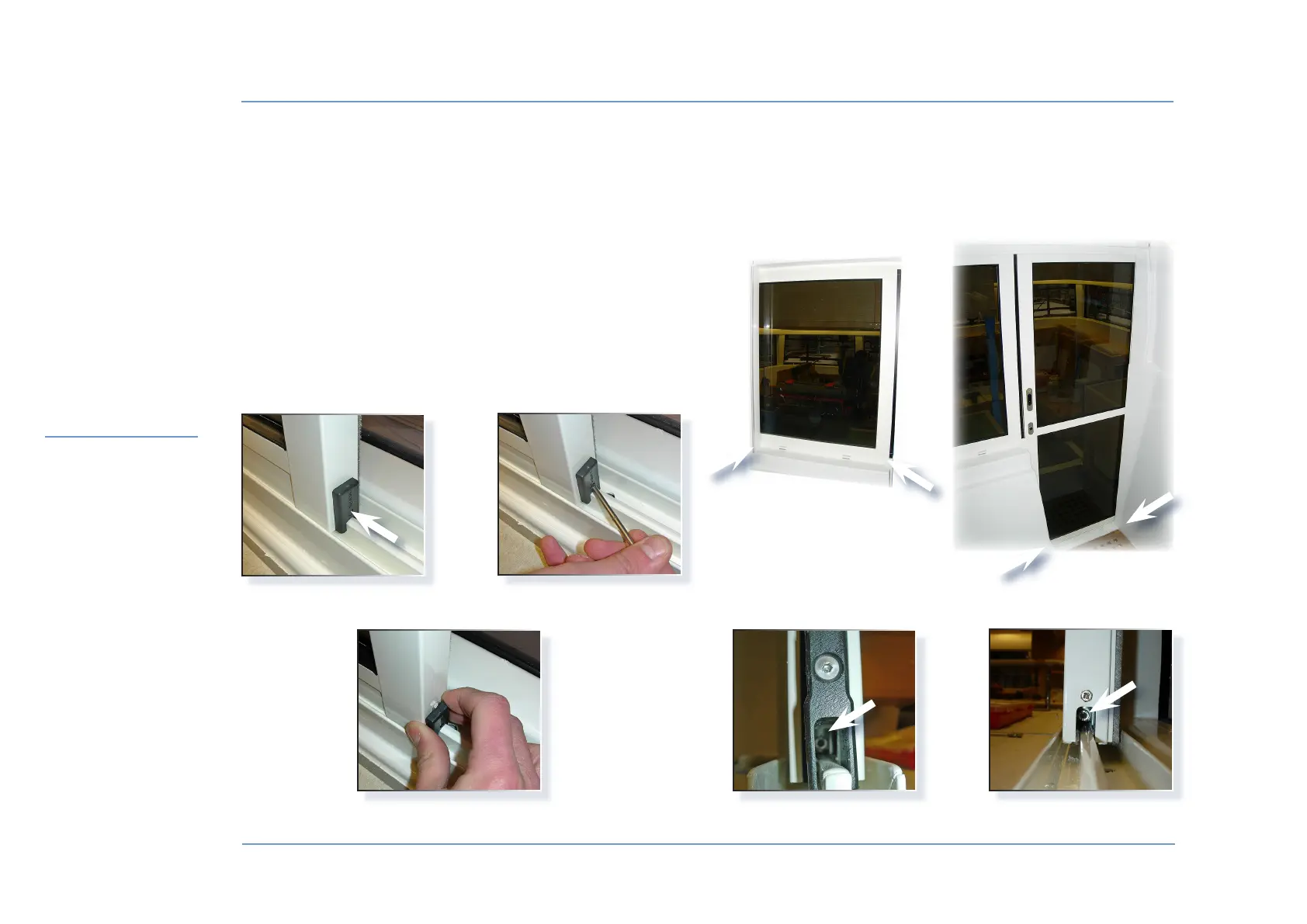

FIGURE 1
If it is necessary to modify the adjustments of the height of sliding
bay windows of the entrance door or the serving hatch, proceed as
follows:
l
DISMANTLING ANTI-UNHINGING SYSTEMS
Each bay window is provided with a part preventing unhinging at its
base.
To remove it, it is recommended to push in the retaining pin (figure 1)
with a screwdriver (figure 2).
Then, remove the part freed by hand (figure 3).
l
ADJUSTING THE BAY WINDOW HEIGHT
Adjust the height of a bay window by rotating the screws that will vary
the height of castors present on its base (figures 4 and 5).
FIGURE 2
FIGURE 3 FIGURE 4
FIGURE 5
