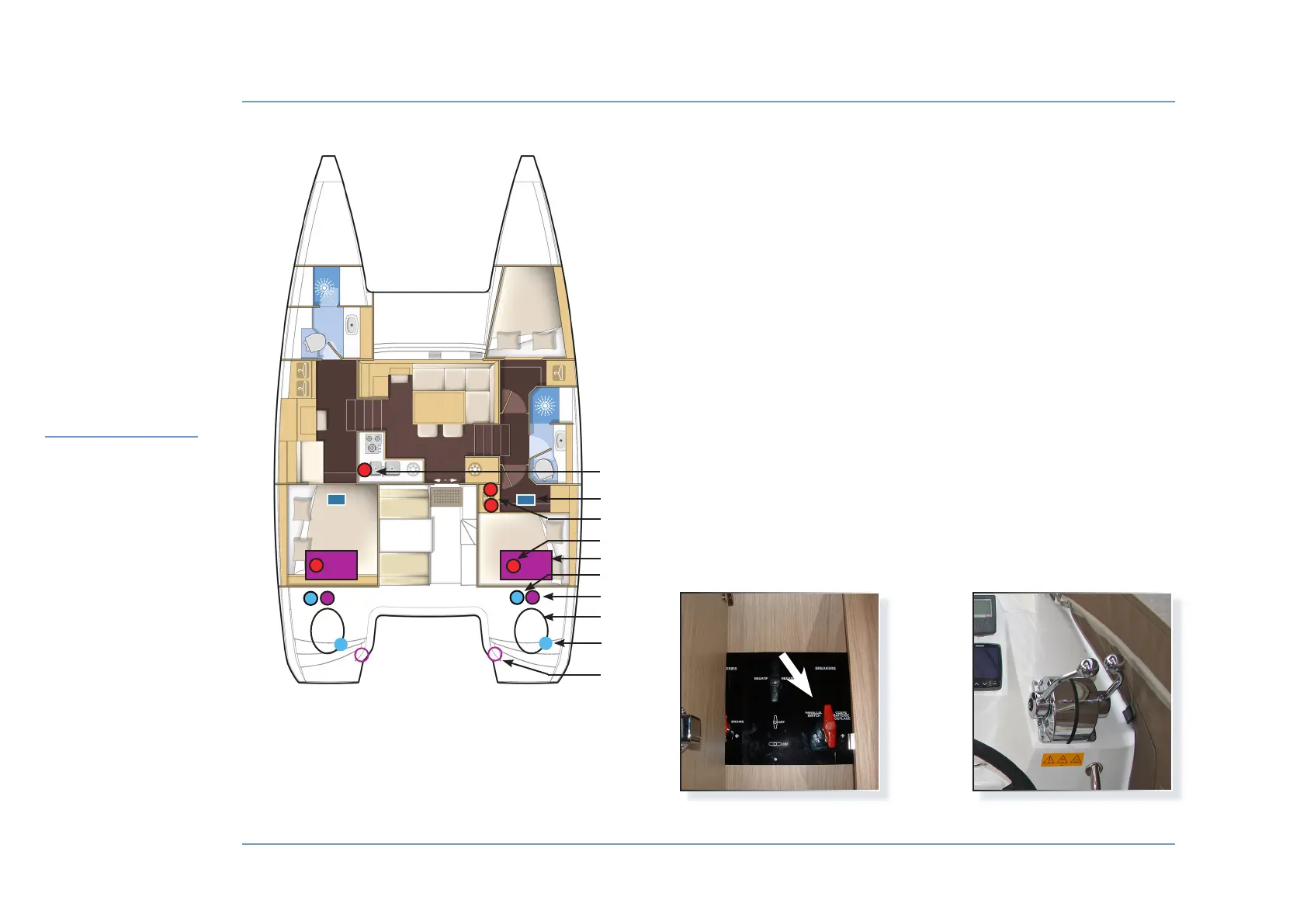

ENGINE LAYOUT
88
MOTORIZATION
LAGOON 39
Please note: you can find the same locations
in the other accommodation versions.
1 - Engine cut outs + coupling (starboard).
2 - 12 V batteries.
3 - Fuel valve.
4 - Fuel tank.
5 - Sea water filter.
6 - Fuel filter.
7 - Engine.
8 - Engine water inlet valve.
9 - Fuel tank filler.
Each hull has the same components.
Nota: each valve in the boat is identified.
3
1
2
COUPLING CUT OUTS ENGINE CONTROLS
4
6
5
9
7
8
1
