BILGE PUMP SYSTEM - GREY WATERS
62
WATER SYSTEMS
LAGOON 39

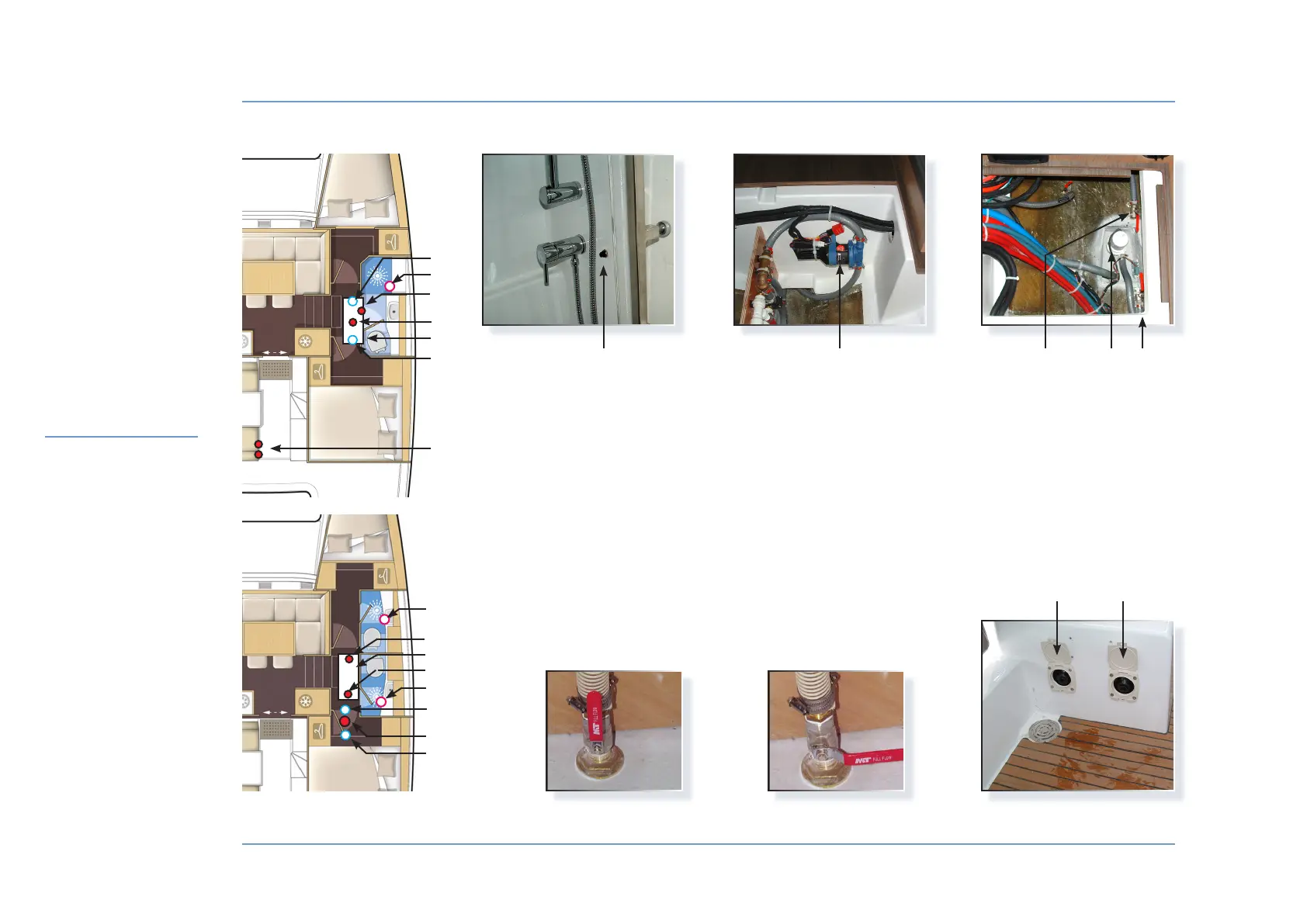

1 - Front / aft compartment outlet valve.
2 - Shower pump switch.
3 - Shower drain pump.
4 - Electric bilge pump.
5 - Hull sump.
6 - Manual bilge pump.
Each hull has the same components.
Nota: each valve in the boat is identified.
6
6
2 3 1 4 1
SEA-COCK
OPEN
SEA-COCK
CLOSED
2 cabins, 3 cabins and 4 cabins
versions with 2 bathrooms.
1
4
5
1
6
3
2
4
1
5
2
1
3
2
3
4 cabins version with 4 bathrooms.
