Lagoon 39 - 12 V Electrical Panel - Battery Chargers - Inverter; Electricity

12 V ELECTRICAL PANEL - BATTERY CHARGERS - INVERTER
74
ELECTRICITY
LAGOON 39
Please note: you can find the same locations
in the other accommodation versions.

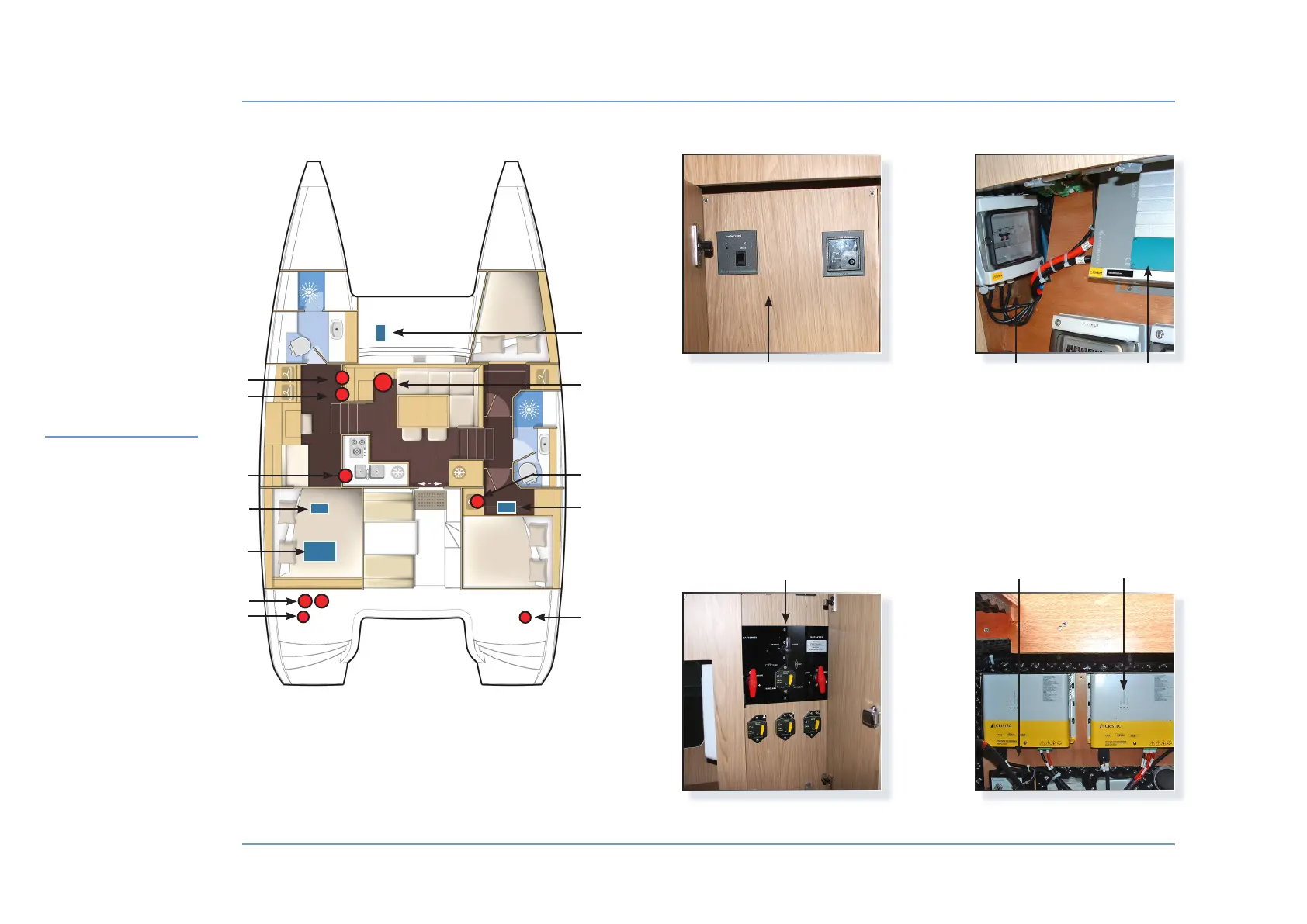

1 - Switch of the inverter + voltmeter.
2 - 12 V / 110 V - 220 V inverter.
3 - Automatic breaker of the inverter.
4 - Boat and port engine cutouts.
5 - Engine battery.
6 - 12 V service batteries.
7 - Battery chargers.
8 - Load balancer.
9 - Generator battery.
10 - Electrical panel.
11 - Cut out coupling / batteries +
starboard engine.
1
2
8
7
43
10
1
4
7
8
5
11
5
6
8
9
2 - 3
